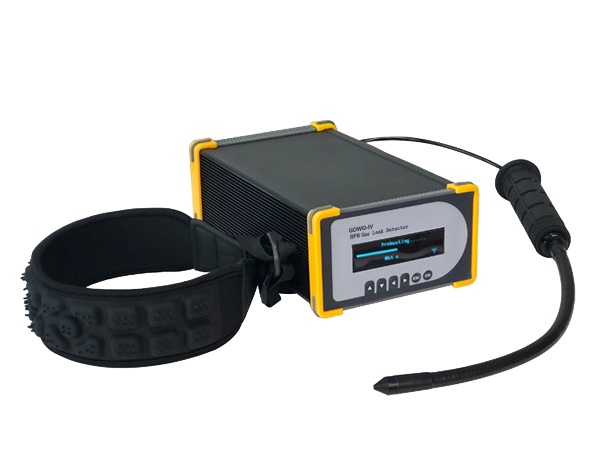

HV HIPOT GDWG-IV SF6泄露探测器 (0-1000ppmv)

Measuring principle: Non-dispersive infrared sensor (NDIR)

Resolution: 0.1ppmv

Measuring range: 0-1000ppmv

Accuracy: ±2%FS (0-1000ppm). Even the measuring range is over 5000ppm, the instrument will not be damaged.

Repeat-ability error: ≤±1%

Sensitivity: 0.1ppmv (can be customized to 0.01ppm, for option)

Response time: ≤3s

Recovery time: ≤5s

Stability: ≤±20ppm, more than 1000hours

Zero shift: ≤±1%(F.S/year)

Linear error: ≤±1%

Storage temperature: -20~+60℃

Operation temperature: -20~+50℃

Environment humidity: 0-95%RH

Operation humidity: 0-95%(non-condensing)

Sampling mode: Built-in electromagnetic diaphragm pump, automatic slot-in type, flow up to 1L/min.

Working voltage: 220VAC±10%,50Hz Or Built-in Li-battery, continuous working 12hours after full charge.

Peak current: <700mA

Average power: <2W.

Operation air pressure: 800~1150hPa.

Dimension: 140*235*83mm

Weight: About 1.5kg
