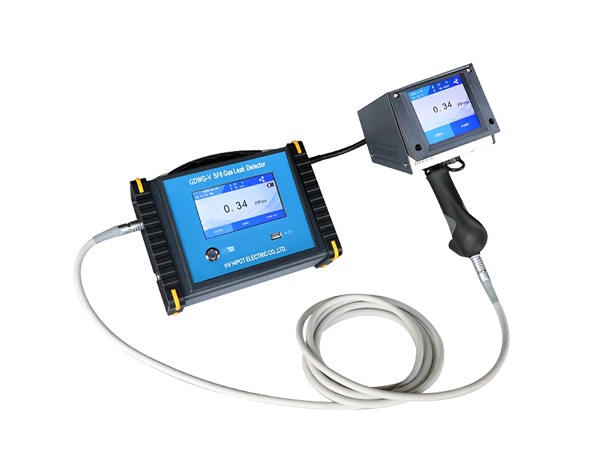

HV HIPOT GDWG-V SF6 Gas Leakage Detector ( 0-1500ppm)

Measuring principle: Non-dispersive infrared sensor (NDIR), dual-wavelength principle

Measuring range: 0-1500ppm SF6

Accuracy: ±2%FS(0-1500ppm)

Repeatability error: ≤±1%

Response time: ≤2s

Recovery time: ≤8s

Stability: ≤±20ppm, more than 1000hours

Zero drift: ≤±1%(F.S/year)

Linear error: ≤±1%

Display: double display color LCD, Incell display

Storage temperature: -20~+60℃

Operation temperature: -20~+50℃

Sampling mode: pump suction, flow > 1L/min.

Working voltage: 220VAC±10%,50Hz Or Built-in Li-battery.

Battery: charging time 3 hours, can be used continuously for more than 12 hours, can work well if external power supply is connected.

Peak current: <700mA

Average power: <2W

Air pressure: 800~1150hPa

Dimension: 160*70*220mm, 106*170*120mm

Weight: 2kg
