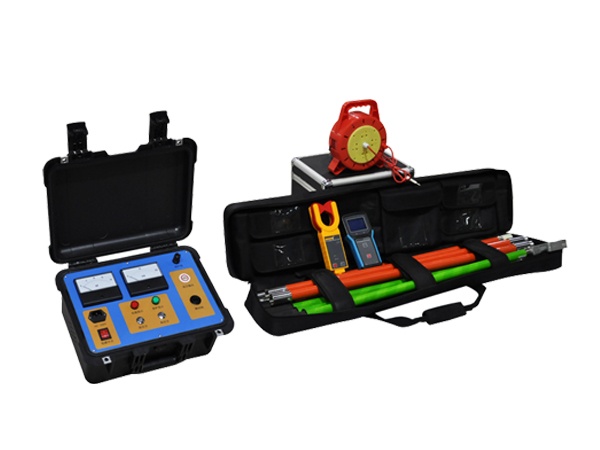

HV HIPOT GDXG-F Overhead Transmission Line Fault Locating System

Locating Accuracy: 0.2m

Transmitter Output Characteristics:

Output frequency: 1Hz

Open circuit voltage: basic wave effective value: 0~2800V, (DC impulse, peak value 8kV, equivalent to the peak phase voltage of 10kV line)

Short circuit current: base wave effective value 0~35mA (DC impulse, peak value 100mA)

Wireless communication distance between sensor and receiver: not less than 100m

Power Supply:

Transmitter: AC 220V or generator (output power ≥1500W)

Transmitter power: Max. 900W

Sensor: No. 5 alkaline dry battery*3

Receiver: No. 5 alkaline dry battery*5

Dimension:

Transmitter: 417*234*318 mm

Sensor: 180*100*35 mm

Receiver: 205*100*35 mm

Weight:

Transmitter: 16.8kg

Sensor: 0.45kg

Receiver: 0.45kg

Operating Environment:

Temperature: -10℃-40℃

Humidity: 5-90%RH

Altitude: <4500m
