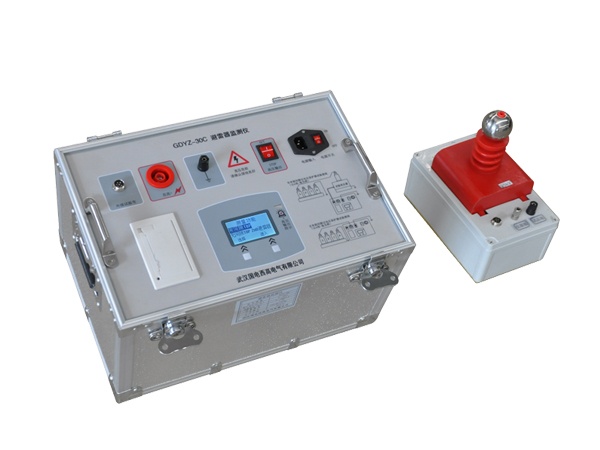

HV HIPOT GDYZ-30C 过电压保护试验装置 (AC 0.00-30.0kV)

1. Power frequency Discharge Voltage Test

Output voltage: AC 0.00-30.0kV

Resolution: 0.1kV

Measurement accuracy: ±1.5%±2digits.

Test interval time: ≥15s

Function: Automatic calculation of the three average values after the test is completed.

Print: Test result can be printed.

2. DC 1mA reference voltage test

Rated output: DC 0-30kV, current 0-1000μA

Measurement range: Current 0-1000μA, voltage 0-30.0kV

Resolution: Current 1μA, voltage 0.1kV

Accuracy: ±1.5%±1digit.

Function: With function of residual voltage automatic discharge.

Print: Test result can be printed.

3. Other parameters

Power supply: 220V±10%

Ambient temperature: -10℃~50℃

Relative humidity: ≤80%

Altitude: <1000M

Size & Weight: Main unit: 380*280*210mm, 5.8kg

Testing transformer: 255*150*255mm, 8.7kg
