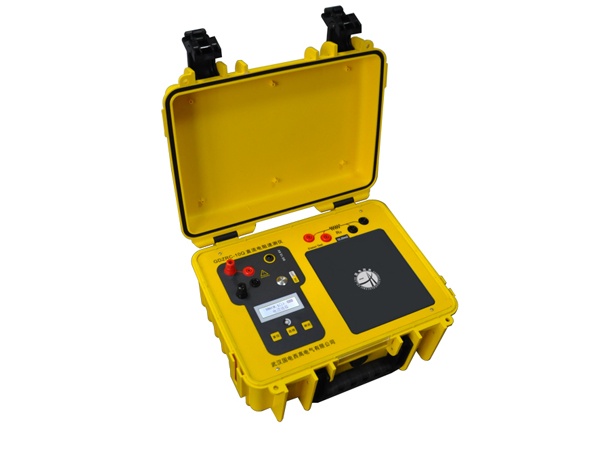

HV HIPOT GDZRC-10Q 直流线圈电阻测试仪

Power Supply: DC: 12.6V/2.2AH Built-in lithium battery (with power adapter)

Output Current: 5mA, 100mA, 300mA, 1A, 10A(Adjustable)

Measurement range (resistance range switch):

10A: 0-0.1Ω

1A: 0,03-6Ω

300mA: 0,1Ω-20Ω

100mA: 0,3Ω-60Ω

5mA: 30Ω-20kΩ

Accuracy:

- Less than1.000kΩ: ±(0.2%RD+0.05%FS)

 - 1.000kΩ or above: ±(0.2%RD+0.1%FS)

Min. resolution: 0.1μΩ

Display: LCD screen, legible in the sunlight

Working Temperature: -10～40℃

Ambient Temperature: ≤80%RH, no condensation

Storage Condition: -20℃~50℃, ≤95%RH, no condensation
