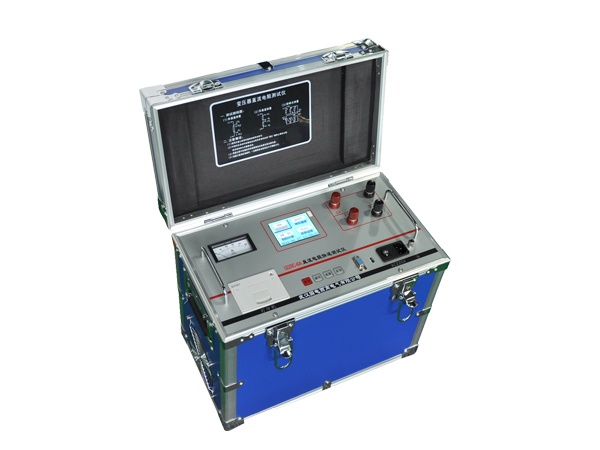

HV HIPOT GDZRC-40U DC Winding Resistance Tester (3 phase)

Output current: <5mA, 2.5A, 5A, 10A, 20A, 40A

Min. resolution: 0.1μΩ

Measurement range:

40A: 50μΩ~500mΩ

20A: 100μΩ~1Ω

10A: 500μΩ~2Ω

5A: 1mΩ~4Ω

2.5A: 2mΩ~8Ω

<5mA: 10Ω~20KΩ

Accuracy: ±(0.2%+2digits)

Operation temperature: 0~40℃

Humidity: <90%RH (no condensing)

Size: 325mm×240mm×275mm (L×W×H)

Weight: 15kg (without test wire)
