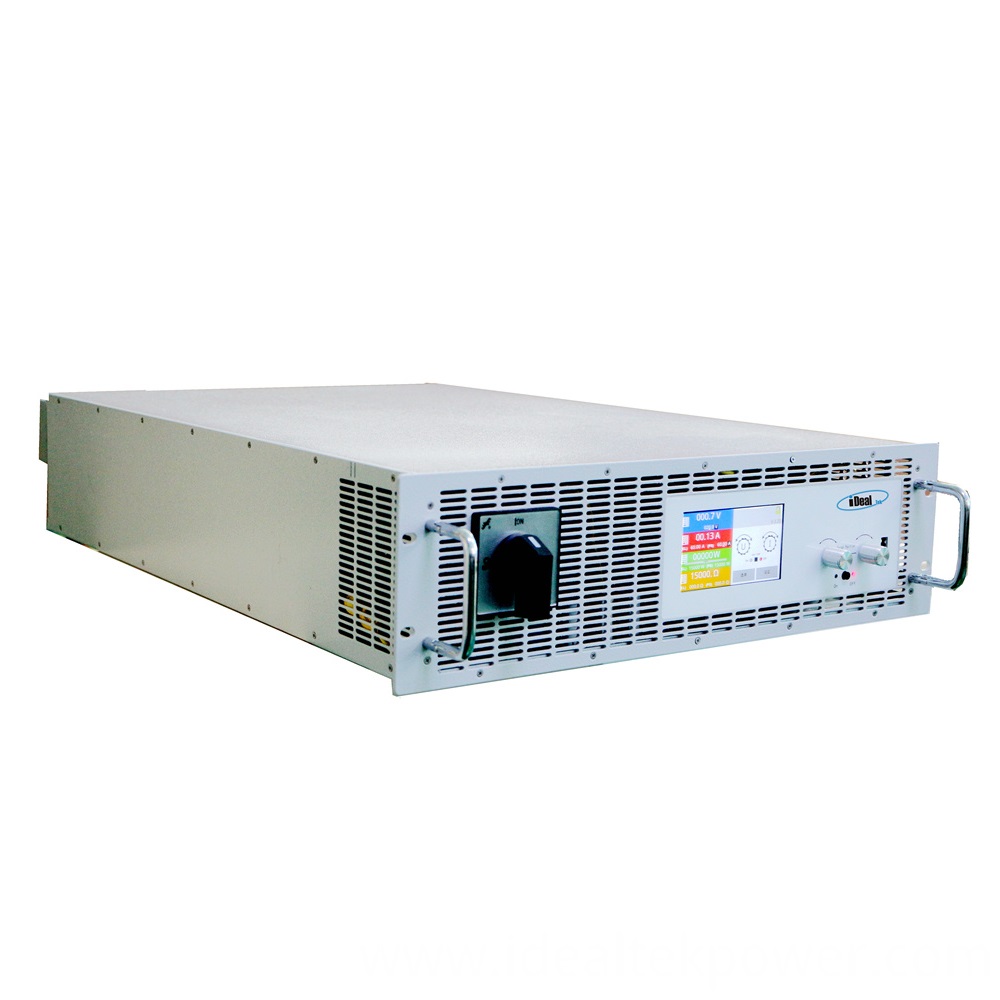

IdealTek BPS15-200-210 双向可编程直流电源 (15KW, 200V, 210A)

Input

Phase: Three-Phase

Voltage: 380Vac/ 400Vac/ 480VAc (-10%/+15%)

Frequency: 45~65Hz

         Power factor: >0.99

Output

Rated power: 15KW

Voltage range: 0V ~ 200V

Current range: -360A ~ 360.0A

         Voltage ripple: ≤300mVpp; ≤40mVRMS

         Voltage accuracy: <0.1%UMax

         Current accuracy: <0.2%IMax

         Efficiency: ≤94.5%

Protection: Over Temperature, over-voltage, over current, over power and grid failure protection.

Size: 483*133*775 mm
