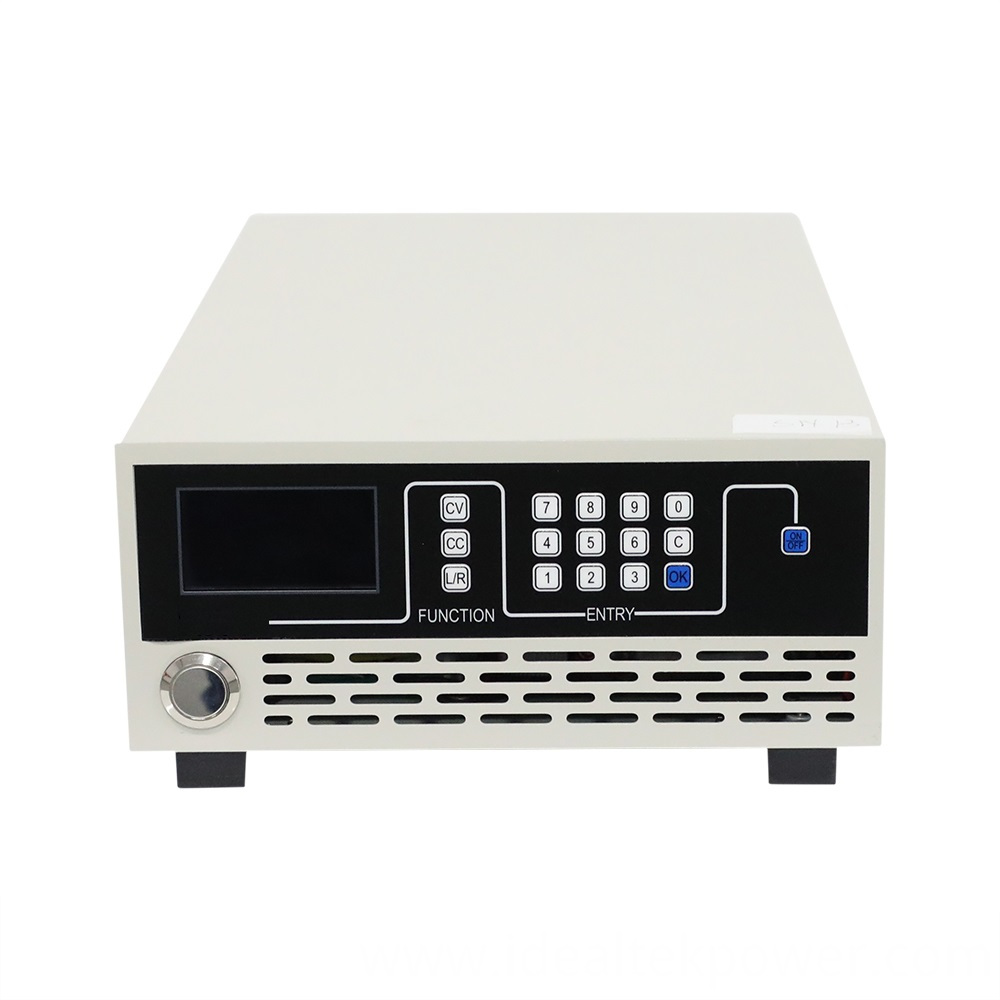

IdealTek CSP30H03 台式数控可编程直流电源 (900W, 300.0V, 3.0A)

Input

Phase: Single-Phase

Voltage: 220Vac±10%

Frequency: 50Hz/60Hz

        Power factor: >0.92

Output

Rated power: 900W

        Power accuracy: < 0.5% of rated value

Rated voltage: 300.0V

        Voltage accuracy: < 0.2% of rated value

Rated current: 3.0A

        Current accuracy: < 0.3% of rated value

  Voltage ripple:＜0.3%

Protection functions: Output voltage – limiting protection, output current –limiting protection, output power – limiting protection and over temperature protection

Communication port: RS232 or RS485 interface, In line with MODBUS-RTU standard.

Cooling method: Forced air cooling

Working temperature: -5°C～45°C

Storage temperature: -20°C～60°C

Relative humidity ＜80%(non-condensing)

Size: 210*88*350 mm

Weight: ~6kg
