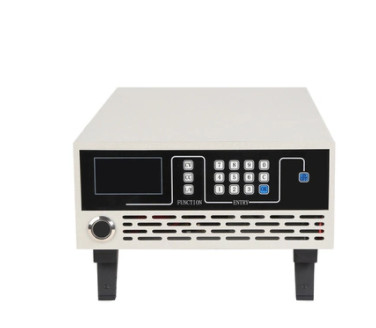

IdealTek CSP6015 台式数字控制可编程直流电源 (900W, 60.0V, 15.0A)


Connection mode: Single-Phase

Voltage: 220Vac±10%

Frequency: 50Hz/60Hz

        Power factor: >0.92


Rated power: 900W

        Power accuracy: < 0.5% of rated value

Rated voltage: 60.0V

        Voltage accuracy: < 0.2% of rated value

Rated current: 15.0A

        Current accuracy: < 0.5% of rated value

        Voltage ripple:<0.3%

        Regulation time: <10ms

Protection functions: Output voltage – limiting protection, output current –limiting protection, output power – limiting protection and over temperature protection

Communication port: RS232 or RS485 interface, In line with MODBUS-RTU standard.

Cooling method: Forced air cooling

Working temperature: -5°C~45°C

Storage temperature: -20°C~60°C

Relative humidity <80%(non-condensing)

Size: 210*88*350 mm

Weight: ~6kg
