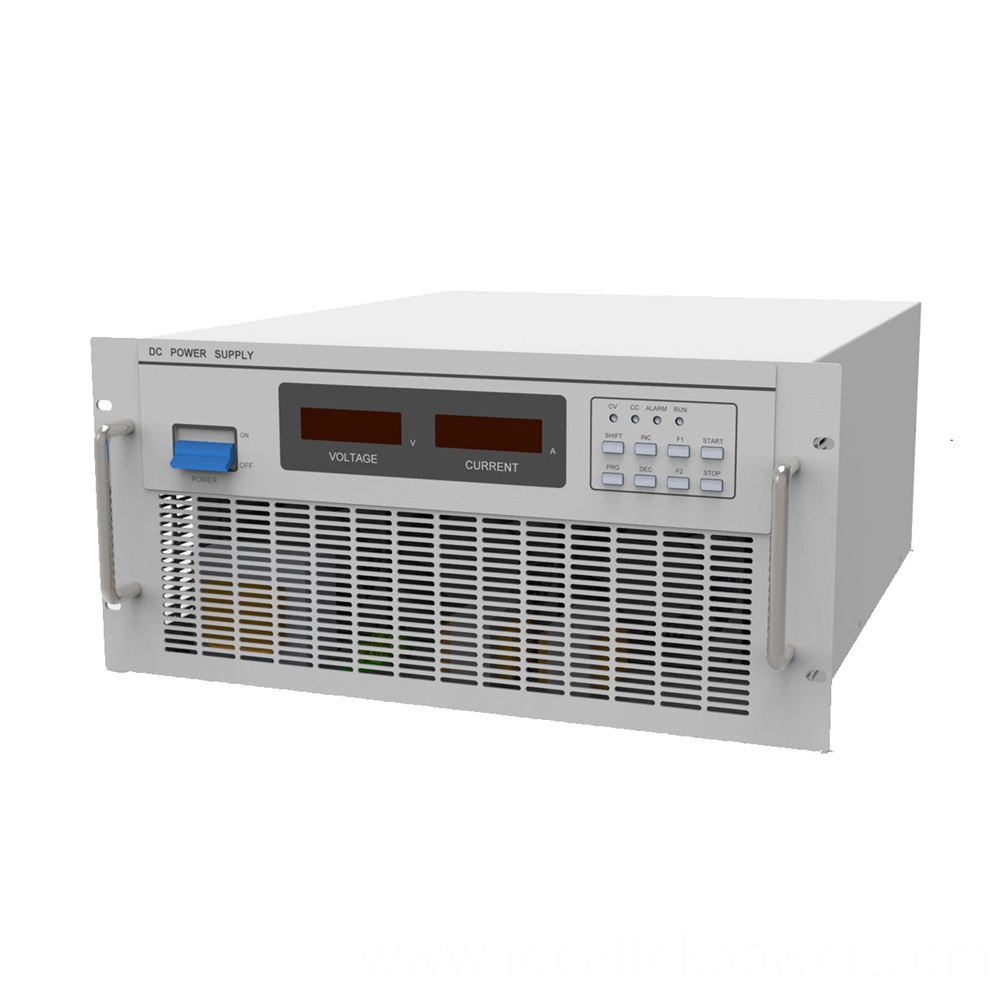

IdealTek MTP‐0200‐0050T 大功率直流电源 (10KW, 200.0V, 50.0A)


Voltage: Three-Phase, Four-Wire  380V±10%

Frequency: 50Hz/60Hz±5Hz


Rated power: 10KW

Output voltage adjusting range: 0V ~ 200.0V

Output current adjusting range: 0A ~ 50.0A

Ripple (Vr.m.s.): ≤0.5% F.S

Response time: ≤10ms (measured @ 10%-90% resistive loading)

Efficiency: ≥88% (measured @ 80%-100% resistive loading)

Setting and display

Control mode: RS485 communication interface, In line with MODBUS-RTU standard.

Display mode: LED digital display

Protection and Monitoring functions: OVP, OCP. OTP, Output short-circuit protection, Automatic voltage compensation protection

Noise: ≤60dB

Protection degree: IP20

Cooling method: Forced air cooling

Insulation resistance: ≥20MΩ

Grounding inductance resistance: ≤100mΩ

Working conditions: 0°C~45°C, 10%~90% (non-condensing)

Size: 500*222*550 (19" 5U)
