IETLAB SRR 系列高精度标准电阻器

(Full specifications can be found on datasheet)

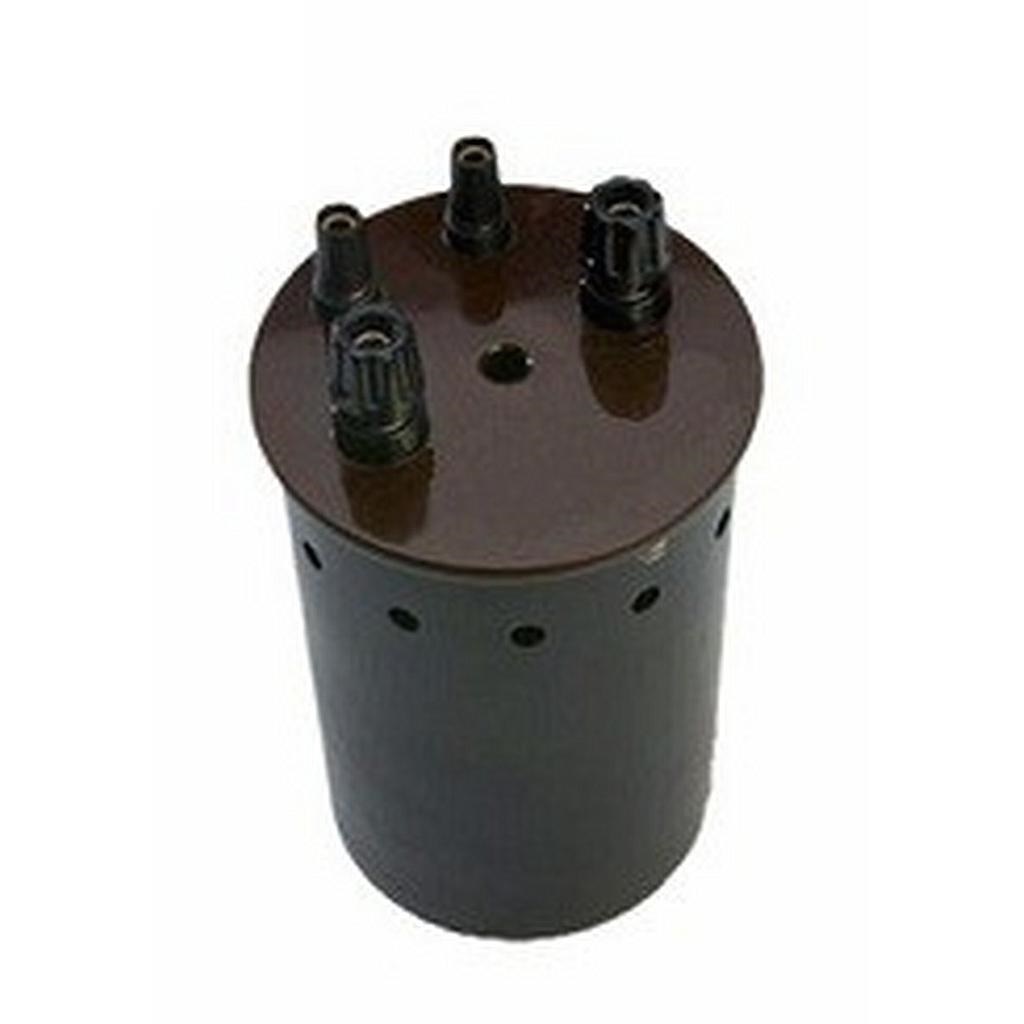

High accuracy four-terminal standard resistors
Resistance Value of: 0.0001 Ω, 0.001 Ω, 0.01 Ω, 0.1 Ω

Details

datasheet

High accuracy four-terminal standard resistors for low values of 0.1 or less. These standards are used for accurate current measurements and for comparisons of low resistances.

  • 4 Values available 0.0001 Ω, 0.001 Ω, 0.01 Ω, 0.1 Ω

Specifications



Model

Nominal Value

(Ω)

Adjustment to Nominal Value

Maximum Current

(A)

Air                        Oil

Temperature

Coefficient

(ppm/°C)

Stability typical

(ppm/yr)

SRR-.0001

0.0001

0.02%

100

200

20

25

SRR-.001

0.001

100 ppm

32

60

25

25

SRR-.01

0.01

100 ppm

10

20

5

10

SRR-.1

0.1

30 ppm

3

6

5

10



Test Conditions - 25°C in Oil

Model

Nominal Value

(Ω)

Current

(A)

Power

(mW)

SRR-.0001

0.0001

30

90

SRR-.001

0.001

10

100

SRR-.01

0.01

3

90

SRR-.1

0.1

1

100



Resistance Elements: 0.1 Ω, bifilar winding on cylindrical brass formers with PTFE insulation. 0.01, 0.001, and 0.0001 ohm resistance material in the form of straight rods or loops supported on 12 mm brass conductors

Terminals: Potential - Copper 4 mm

Current - Brass

Top Panel: Bakelite marked with the value, class designation and serial number

Case: Light alloy, black anodized to give maximum heat radiation

Thermometer Tube: Slotted extending the length of the resistance element

Label: Each standard is fitted with a label that describes its characteristics and operating parameters

Dimensions: 16 cm H x 9 cm Dia (6.3” x 3.55”)

Weight: 0.9 kg (2 lbs)
