IETLAB SCA 系列电容标准（1pF 到10,000μF）
制造商: IET LABS Model: SCA Series 来源: USA 保障: 12 Month - 联系
(Full specifications can be found on datasheet)
Values from 1 pF to 10,000 µF in any custom value available
Stability as good as ±0.01 %/year
Two-to-five terminal configuration, depending on model
Excellent TC: as low as 10 ppm/°C
3 year warranty included
Calibration accredited to ISO-17025 included
Mechanically stabilized capacitors
Calibrations available at standard or any custom frequency
Available in BNC and Binding Posts depending on value

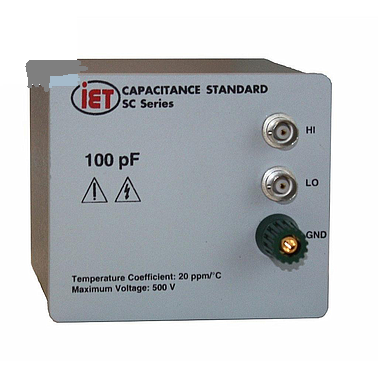

The SCA Standard Capacitor series are highly stable cost-effective capacitance standards with low temperature coefficient, low losses and a wide range of values of 1 pF - 10,000 µF. The cost and flexibility make this our most popular capacitance standard.
From 1 pF to 10 pF, these are made from precision air capacitors. Up to 1 µF, the standard capacitors are constructed of fixed mica capacitors of very high stability for use as two- or three-terminal reference or working standards in the laboratory. Above 1 µF they are made with hermetically sealed polypropylene sulfide,
Typical capacitors, observed over decades, have shown random fluctuations of less than + 0.01% in measured capacitance with no evidence of systemic drift.
