(Full specifications can be found on datasheet)
Wide range of values - 1 mΩ to 10 TΩ
Very stable - up to 10 ppm/yr
ISO-17025 Accredited Calibration Included
3 Year Warranty Included
Excellent TC - as low as 1 ppm/°C
Excellent choice for a resistance standard to calibrate DMM's, Micro-Ohmmeters and Megohmmeters
In addition to the standard values, any custom value is available. Please contact the IET sales department, for more information
Combination of multiple resistors in a single housing is available
SRC High Resistance Standard Basic Specifications
|Model||Nominal Value (Ω)||Adjustment to Nominal (ppm)||Calibration Uncertainty (ppm)||Stability 1 year (ppm)||Tempco (ppm/°C)||Power Coef.(ppm/mW)|
SRC Series Maximum Voltage: 5000 V.
Test Conditions: Four-terminal Kelvin measurements, low power, at 23°C; two-terminal for 1 MΩ and over. Initial calibration data traceable to NIST is provided.

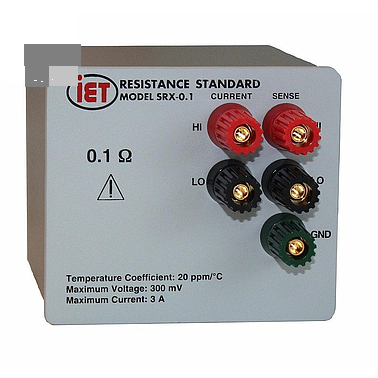

Terminals: SRX: Four 5-way binding posts for 4-terminal measurement for 190 kΩ and under; two binding posts for 1 MΩ and over. The binding posts are constructed of tellurium copper for low thermal emf and low resistance. A case ground terminal is also provided. Triax and bnc terminals are also available.
SRC: Additional GUARD terminal is provided.
Dimensions: 8.6 cm H x 10.5 cm W x 12.7 cm D (3.4" x 4.15" x 5").
Transit Case: Optional Model SRC-100 light weight transit case with handle, suitable for transporting and storing two units. The case provides mechanical protection and insulation from temperature changes during transportation or shipping.
Operating Temperature Range: 15 to 30°C.
The SRX and SRC Series are cost effective, stable, laboratory or portable resistance standards. Their ruggedness and small size plus their low temperature coefficient makes the SRX and Series Resistance Standard ideal for any applications outside of laboratory environment within the temperature range of 18°C to 28°C. Because of the low temperature coefficient, they require no oil-or-temperature bath. The binding posts are constructed of low-thermal emf material. Four 5-way binding posts are used for resistance values of 190 kΩ and under; two binding posts and Kel-F washers are used for 1 MΩ and over.
For lower resistances, the SRX series resistance standards are available in values ranging from 1 mΩ to 100 MΩ, with custom values available.
For higher resistances, the SRC series resistance standards are available in values ranging from 190 MΩ to 10 TΩ, with custom values available.
It is possible to maintain the SRX & SRC resistance standards indefinitely. They are reliable due to their closed, rugged design and sealed resistors. The units are resistant to electromagnetic interference (EMI) because of their metal enclosure.
SRX/SRC Series Economical Resistance Standard
