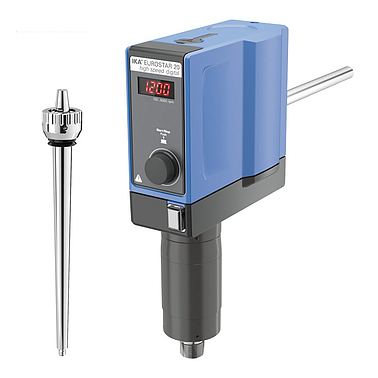

IKA EUROSTAR 20 高速控制型悬臂搅拌器 (0004028600)

Stirring quantity max. per stirring position (H2O): 20 l

Motor rating input: 176 W

Motor rating output: 125 W

Motor principle: Brushless DC

Speed display: 7 segment LED

Speed range: 0/150 - 6000 rpm

Viscosity max.: 10000 mPas

Output max. at stirring shaft: 125 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 20 Ncm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement n > 300rpm: 1 ±%

Deviation of speed measurement n < 300rpm: 3 ±rpm

Stirring element fastening: special output shaft

Chuck range diameter: 0.5 - 10 mm

Hollow shaft, inner diameter: 11 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 16 mm

Extension arm length: 220 mm

Speed control: electronic

Nominal torque: 0.2 Nm

housing material: alu-cast coating / thermoplastic polymer

Dimensions (W x H x D): 86 x 325 x 208 mm

Weight: 5.3 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 42

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 176 W
