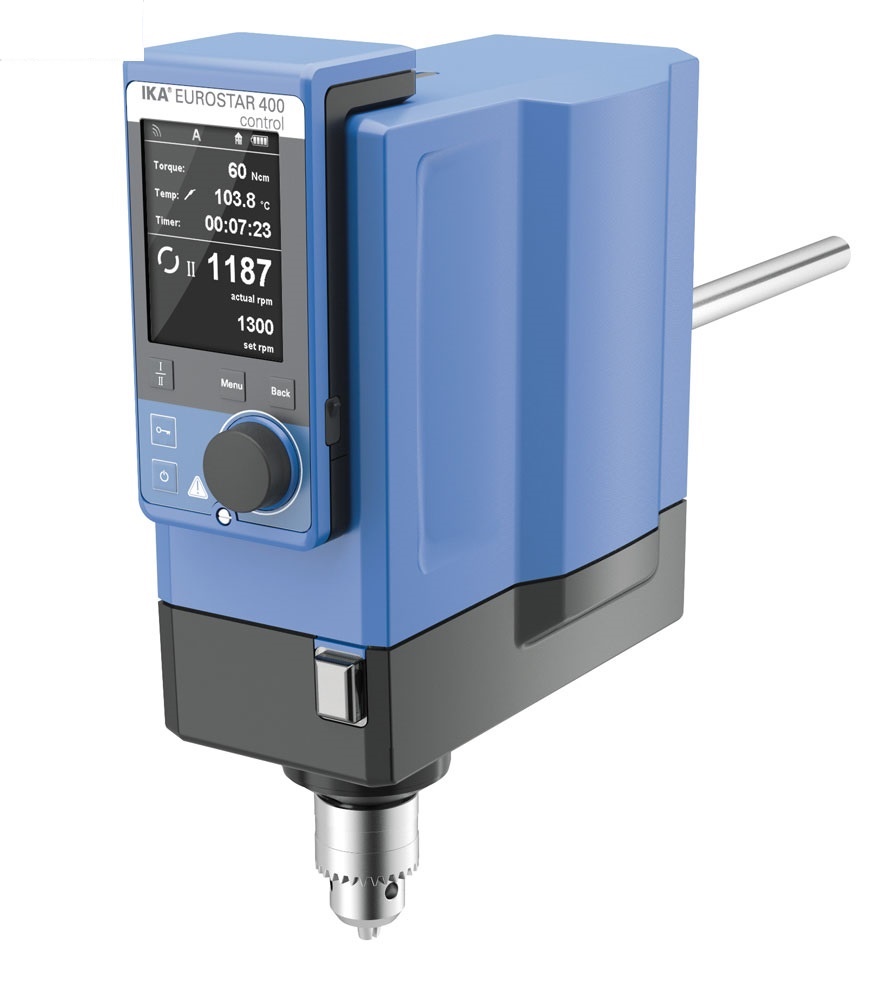

IKA EUROSTAR 400 control （0004214100）数显型套装顶置搅拌分散机

Stirring quantity max. per stirring position (H2O): 150 l

Motor rating input: 220 W

Motor rating output: 176 W

Motor principle: Brushless DC

Speed display: TFT

Speed range: 0/6 - 2000 rpm

Intermittent operation: yes

Viscosity max.: 100000 mPas

Output max. at stirring shaft: 167 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 400 Ncm

torque I max.: 400 Ncm

torque II max.: 80 Ncm

Speed range I (50 Hz): 6 - 400 rpm

Speed range II (50 Hz): 30 - 2000 rpm

Speed range I (60 Hz): 6 - 400 rpm

Speed range II (60 Hz): 30 - 2000 rpm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement n > 300rpm: 1 ±%

Deviation of speed measurement n < 300rpm: 3 ±rpm

Stirring element fastening: chuck

Connection for ext. temperature sensor: PT1000

Temperature display: yes

Plug-in coupling (Ø): 10 mm

Chuck range diameter: 3 - 16 mm

Hollow shaft, inner diameter: 10.3 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 16 mm

Extension arm length: 160 mm

Torque display: yes

Speed control: electronic

Nominal torque: 4 Nm

Torque measurement: trend

deviation of torque measurement I: 40 ±Ncm

deviation of torque measurement II: 12 ±Ncm

Timer: yes

Timer display: TFT

Time setting range: 1 - 6000 min

Temperature measuring range: -10 - +350 °C

Temperature measurement resolution: 0.1 K

Accuracy of temperature measurement: ±0.05 + tolerance PT1000 (DIN IEC 751 Class A) K

Limit deviation temperature sensor: ≤ ± (0.15 + 0.002xITI) K

housing material: alu-cast coating / thermoplastic polymer

communication distance (depend onbuilding) max. 150 m

Dimensions (W x H x D): 114 x 320 x 268 mm

Weight: 8.2 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 40

RS 232 interface: yes

USB interface: yes

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 226 W
