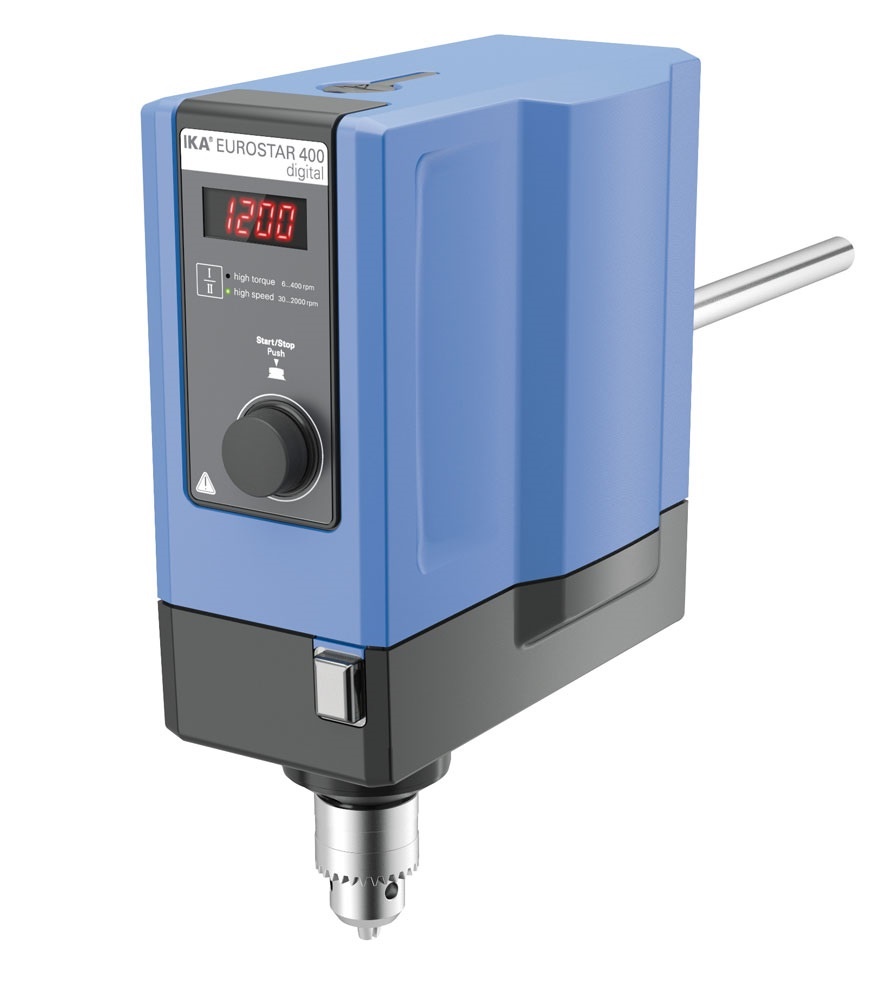

IKA EUROSTAR 400 数字搅拌器(0004214000)

  • 制造商: IKA
    Model: EUROSTAR 400 digital (0004214000)
    来源: Germany
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Stirring quantity max. per stirring position (H2O): 150 l

Motor rating input: 220 W

Motor rating output: 176 W

Motor principle: Brushless DC

Speed display: 7 segment LED

Speed range: 0/6 - 2000 rpm

Viscosity max.: 100000 mPas

Output max. at stirring shaft: 167 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 400 Ncm

torque I max.: 400 Ncm

torque II max.: 80 Ncm

Speed range I (50 Hz): 6 - 400 rpm

Speed range II (50 Hz): 30 - 2000 rpm

Speed range I (60 Hz): 6 - 400 rpm

Speed range II (60 Hz): 30 - 2000 rpm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement n > 300rpm: 1 ±%

Deviation of speed measurement n < 300rpm: 3 ±rpm

Stirring element fastening: chuck

Plug-in coupling (Ø): 10 mm

Chuck range diameter: 3 - 16 mm

Hollow shaft, inner diameter: 10.3 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 16 mm

Extension arm length: 160 mm

Speed control: electronic

Nominal torque: 4 Nm

Dimensions (W x H x D): 114 x 300 x 245 mm

Weight: 7.8 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 42

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 226 W
