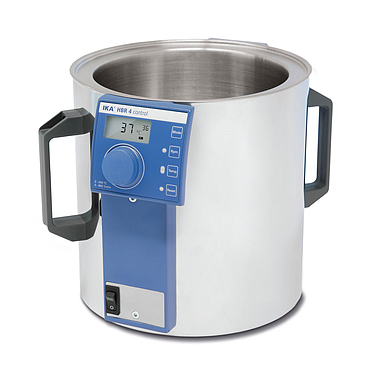

IKA HBR 加热锅4控制(0020003549)

Heat output: 1000 W

Heating temperature range: room temp. - 200 °C

Heat control: stepless

Set temperature resolution: 1 ±K

Controller oscillation (3 l water / 90 °C): 1 ±K

Controller oscillation (3l Silicone oil / 50mPas / 150°C): 2 ±K

Speed display: LCD

Speed control: stepless

Speed range: 150 - 800 rpm

Motor rating input: 5 W

Motor rating output: 1 W

Filling volume max.: 4 l

Filling point min.: 20 mm

Material in contact with medium: stainless steel 1.4301

Adjustable safety circuit: 50 - 210 °C

Class designation acc. DIN 12876: II

Outer diameter: 250 mm

Inner diameter: 200 mm

Outer height: 250 mm

Inner height: 160 mm

Dimensions (W x H x D): 340 x 250 x 340 mm

Weight: 4.4 kg

Permissible ambient temperature max.: 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 20

RS 232 interface: yes

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 1020 W

Details

Datasheet
