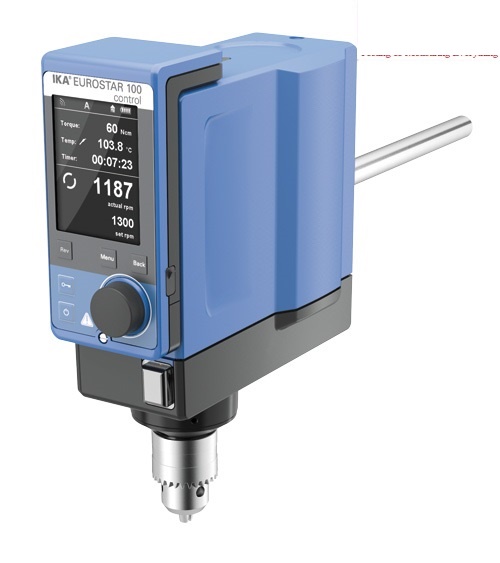

IKA EUROSTAR 100 control(0004028500)搅拌器

Stirring quantity max. per stirring position (H2O): 100 l

Motor rating input: 174 W

Motor rating output: 142 W

Motor principle Brushless DC

Speed display: TFT

Speed range: 0/30 - 1300 rpm

Reversible direction of rotation: yes

Intermittent operation yes

Viscosity max.: 70000 mPas

Output max. at stirring shaft: 136 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 100 Ncm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement n > 300rpm: 1 ±%

Deviation of speed measurement n < 300rpm: 3 ±rpm

Stirring element fastening: chuck

Connection for ext. temperature sensor: PT1000

Temperature display: yes

Chuck range diameter: 0.5 - 10 mm

Hollow shaft, inner diameter: 11 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 16 mm

Extension arm length: 220 mm

Torque display: yes

Speed control: electronic

Nominal torque: 1 Nm

Torque measurement: trend

deviation of torque measurement I: 6 ±Ncm

Timer: yes

Timer display: TFT

Time setting range: 1 - 6000 min

Temperature measuring range: -10 - +350 °C

Temperature measurement resolution: 0.1 K

Accuracy of temperature measurement: ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K

Limit deviation temperature sensor: ≤ ± (0.15 + 0.002xITI) K

housing material: alu-cast coating / thermoplastic polymer

communication distance (depend onbuilding) max. 150 m

Dimensions (W x H x D): 86 x 267 x 230 mm

Weight: 4.7 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 40

RS 232 interface: yes

USB interface: yes

Voltage: 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 186 W
