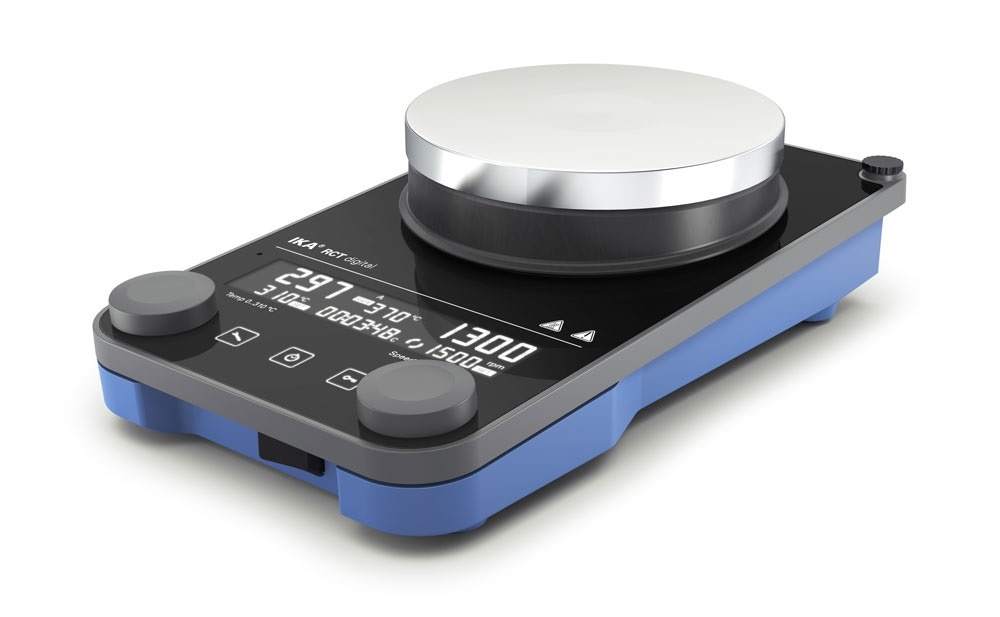

IKA IKA Plate(RCT数字)(0025004601)磁力搅拌器

Number of stirring positions: 1

Stirring quantity max. per stirring position (H2O): 20 l

Motor rating output: 9 W

Direction of rotation: right / left

Speed display set-value: LCD

Speed display actual-value: LCD

Speed control: Turning knob

Speed range: 50 - 1500 rpm

Setting accuracy speed: 10 rpm

Stirring bar length: 30 - 80 mm

Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h): 13 +K

Heat output: 600 W

Temperature display set-value: LCD

Temperature display actual-value: LCD

Temperature unit: °C / °F

Heating temperature range: Room temp. + device self heating - 310 °C

Heat control: Turning knob

Temperature setting range: 0 - 310 °C

Temperature setting resolution of heating plate: 1 K

Connection for ext. temperature sensor: PT1000, ETS-D5, ETS-D6

Temperature setting resolution of medium: 1 K

Adjustable safety circuit: 50 - 370 °C

Set-up plate material: Aluminium alloy

Set-up plate dimensions: Ø 135 mm

Automatic reverse rotation: yes

Intermittend mode: yes

Viscosity trend measurement: yes

Timer: yes

Sensor in medium detection (Error 5): yes

Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C): 2 ±%

Heating rate (1l H2O in H1500): 6.5 K/min

Heat control accuracy of heating plate (at 100°C): 5 ±K

Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): 0.5 ±K

Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): 0.5 ±K

Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C): 0.2 ±K

Dimensions: (W x H x D) 160 x 85 x 270 mm

Weight: 2.3 kg

Permissible ambient temperature 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 42

RS 232 interface: yes

USB interface: yes

Voltage: 220 - 230 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 650 W

Power input standby: 1.6 W
