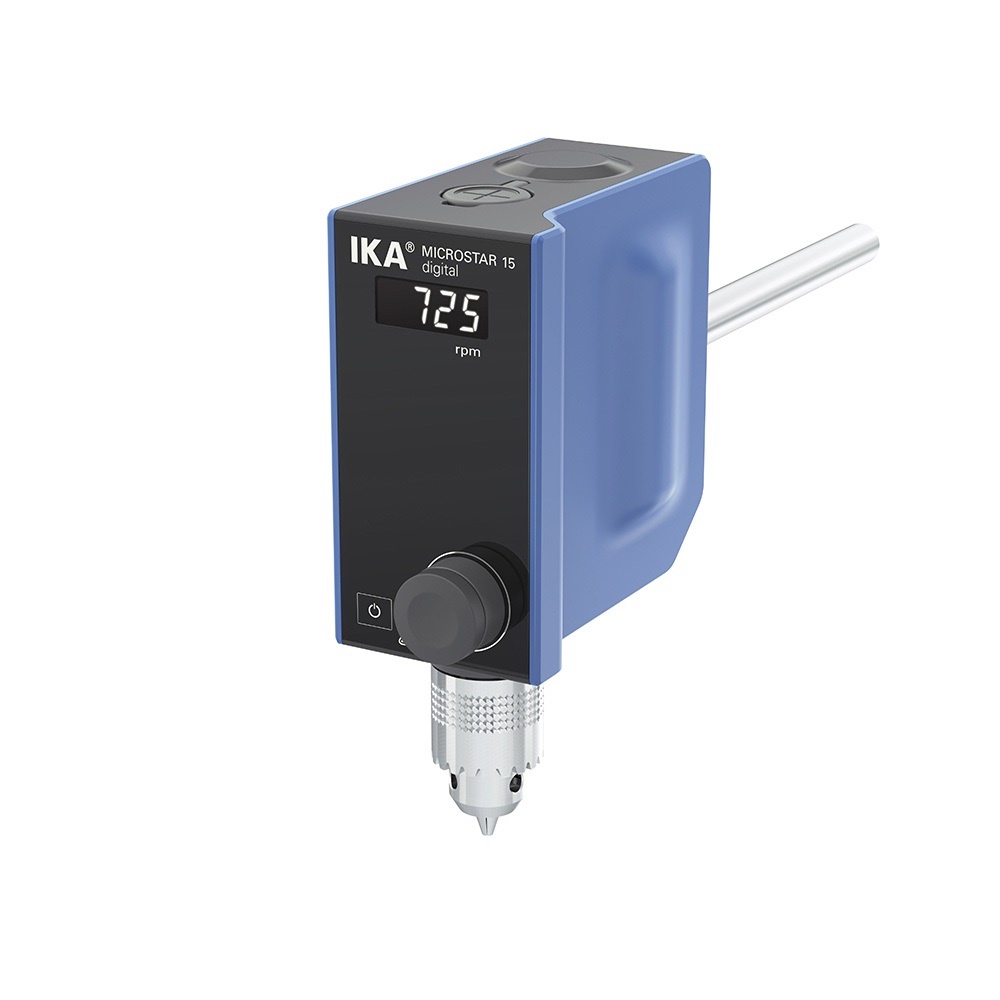

IKA MICROSTAR 15 机械搅拌器/ 数字/ 高效能(0025004883)

  • 制造商: IKA
    Model: MICROSTAR 15 digital (0025004883)
    来源: Germany
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Stirring quantity max. per stirring position (H2O): 10 l

Motor rating input: 32 W

Motor rating output: 22 W

Motor principle: Brushless DC

Speed display: LED

Speed min.: 50 rpm

Speed min.: 0/50 rpm

Speed max.: 1000 rpm

Viscosity max.: 8000 mPas

Output max. at stirring shaft: 15.7 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 15 Ncm

Torque max. at stirring shaft at 60 1/min (overload): 15 Ncm

Torque max. at stirring shaft at 100 1/min: 15 Ncm

Torque max. at stirring shaft at 1.000 1/min: 15 Ncm

torque I max.: 30 Ncm

Speed range I (50 Hz): 50 - 1000 rpm

Speed range I (60 Hz): 50 - 1000 rpm

Speed control: Turning knob

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement n > 300rpm: 1 ±%

Deviation of speed measurement n < 300rpm: 3 ±rpm

Stirring element fastening: chuck

Plug-in coupling (Ø): 5.5 mm

Chuck range diameter: 0.5 - 8 mm

Hollow shaft, inner diameter: 8.5 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 13 mm

Extension arm length: 160 mm

Nominal torque: 0.15 Nm

Timer display: none

housing material: alu-cast coating / thermoplastic polymer

Dimensions (W x H x D): 60 x 173 x 126 mm

Weight: 1.26 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 54

USB interface: yes

Voltage: 100 - 240 V

Frequency: 50/60 Hz

Power input: 32 W

Power input standby: 0.3 W

DC Voltage: 24 V=

Current consumption: 1300 mA
