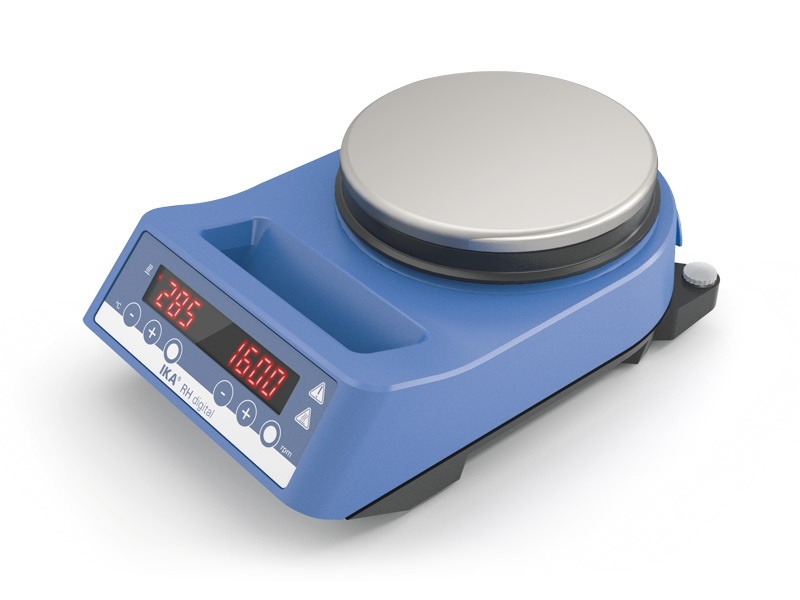

IKA RH digital Rh Digital 基本型加热磁力搅拌器

Number of stirring positions 1

Stirring quantity max. per stirring position (H2O) 15 l

Maximum load 20 kg

Motor rating output 2 W

Direction of rotation left

Speed display set-value LED

Speed adjustment Button

Speed range 100 - 2000 rpm

Setting accuracy speed 50 rpm

Stirring bar length 20 - 80 mm

Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +12 K

Heat output 600 W

Temperature display set-value LED

Temperature unit °C

Heating temperature range 50 - 320 °C

Heat control Button

Temperature setting range 50 - 320 °C

Connection for ext. temperature sensor ETS-D5

Adjustable safety circuit 100 - 360 °C

Set-up plate material stainless steel 1.4301

Set-up plate dimensions Ø 135 mm

Heating rate (1l H2O in H1500) 6 K/min

Dimensions (W x H x D) 160 x 100 x 250 mm

Weight 3.845 kg

Permissible ambient temperature 5 - 40 °C

Permissible relative humidity 80 %

Protection class according to DIN EN 60529 IP 21

Voltage 230 V

Frequency 50/60 Hz

Power input 620 W
