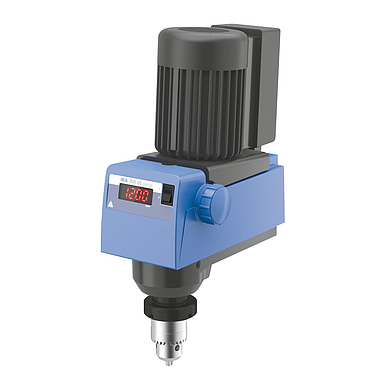

IKA RW 28 悬臂搅拌器(0005040000)

  • 制造商: IKA
    Model: RW 28 digital (0005040000)
    来源: Germany
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Stirring quantity max. per stirring position (H2O): 80 l

Motor rating input: 220 W

Motor rating output: 90 W

Motor principle: Brushless DC

Speed display: LED

Speed range: 60 - 1400 rpm

Viscosity max.: 50000 mPas

Output max. at stirring shaft: 90 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 900 Ncm

Torque max. at stirring shaft at 60 1/min (overload): 1144 Ncm

Torque max. at stirring shaft at 100 1/min: 900 Ncm

Torque max. at stirring shaft at 1.000 1/min: 86 Ncm

torque I max.: 900 Ncm

torque II max.: 300 Ncm

Speed range I (50 Hz): 60 - 400 rpm

Speed range II (50 Hz): 240 - 1400 rpm

Speed range I (60 Hz): 72 - 480 rpm

Speed range II (60 Hz): 288 - 1680 rpm

Speed control: stepless

Setting accuracy speed: 1 ±rpm

Deviation of speed measurement: 10 ±rpm

Stirring element fastening: chuck

Chuck range diameter: 1 - 10 mm

Hollow shaft, inner diameter: 10.5 mm

Hollow shaft (push-through - when stopped): yes

Fastening on stand: extension arm

Extension arm diameter: 16 mm

Extension arm length: 145 mm

Speed control: mechanical

Nominal torque: 9 Nm

housing material: alu-cast coating / thermoplastic polymer

Noise without element: 62.5 dB(A)

Dimensions (W x H x D): 123 x 364 x 252 mm

Weight: 7.5 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 40

Voltage: 220 - 240 / 100 - 115 V

Frequency: 50/60 Hz

Power input: 220 W
