Manufacturer: IKA

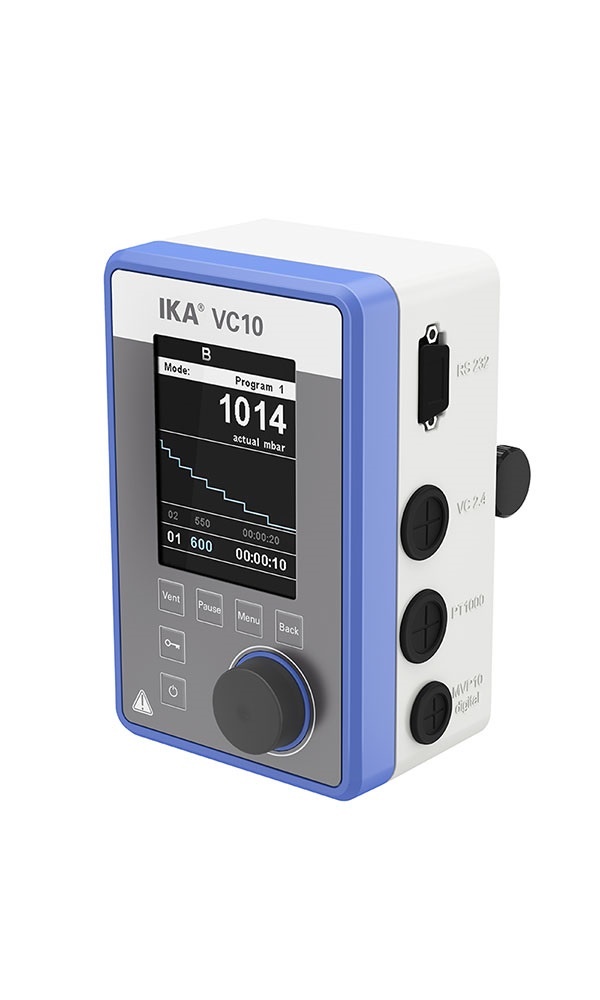

Model: VC 10 Vacuum controller (0020005132)

Origin: Germany

Warrenty: 12 months


Connection diameter suction side: 8 mm

Connection diameter pressure side: 8 mm

Connection diameter venting side: 8 mm

Input pressure: 1 - 1050 mbar

Boiling point detection: yes

Solvent library: yes

Two-point control: yes

Analog speed vacuum control: yes

Display: TFT

Pressure unit / scale: mbar, hPa, mmHg, Torr

Vacuum sensor: yes

Vacuum sensor type: ceramic Al2O3

Pressure max. for pressure sensor: 1.6 bar

Measurement range (absolute): 1 - 1100 mbar

Control range: 1 - 1100 mbar

Resolution pressure: 1 mbar

Measurement uncertainty: 1 mbar

Medium temperature (gas): 5 - 40 °C

Vacuum valve: yes

Venting valve: yes

Connection for ext. temperature sensor: PT1000

Temperature unit: °C / °F

Temperature measuring range: -10 - 200 °C

Temperature measurement resolution: 1 K

Accuracy of temperature measurement: ±1 K

Timer: yes

Time setting min.: 1 s

Time setting max.: 6000 min

Two dot vacuum control interface: VC2.4

Vacuum speed control interface: MVP 10 digital

Material in contact with medium Al2O3, PTFE, FPM, PPS

housing material: PBT

Fastening: stand / clamp

Fastening diameter: 16 mm

Mode automatic: yes

Mode manual: yes

Mode pump %: yes

Mode program: yes

Dimensions (W x H x D): 95 x 150 x 110 mm

Weight: 1.5 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 20

RS 232 interface: yes

USB interface: yes

Voltage: 100 - 240 V

Frequency: 50/60 Hz

Power input: 24 W

Power input standby: 2 W

DC Voltage: 24 V=

Current consumption: 1000 mA
