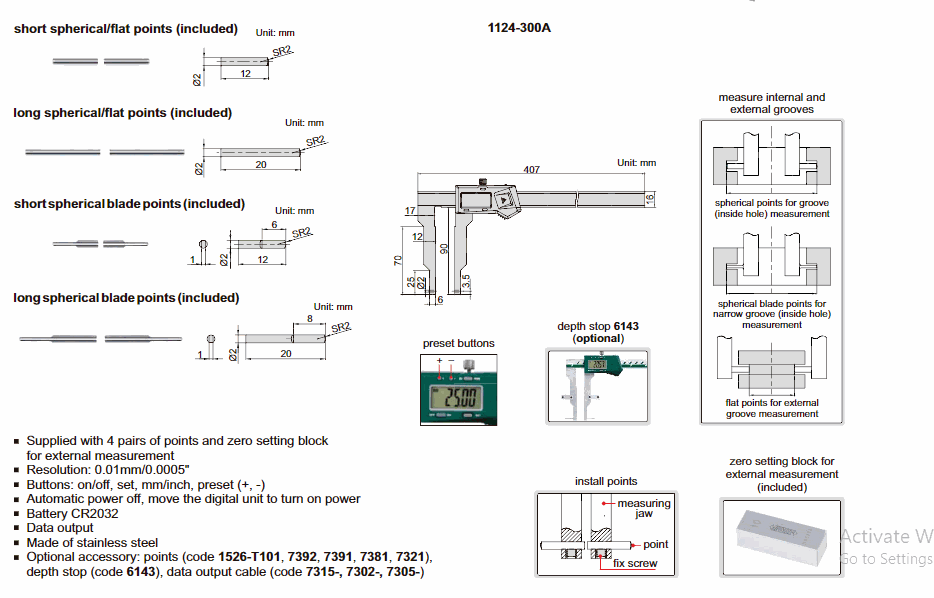

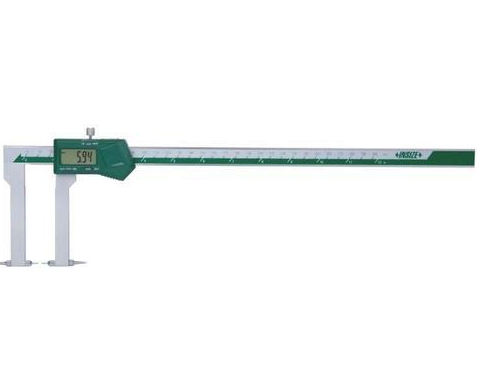

INSIZE 1124-300A 可互换点数字卡尺 (0-300mm; interchangeable points)

Supplied with 4 pairs of points and zero setting block for external measurement

Range: 0-300mm/0-12"

Resolution: 0.01mm/0.0005"

Button function: mm/inch, on/off, set, preset (+,-)

Automatic power off, move the digital unit to turn on power

Battery CR2032

Data output

Made of stainless steel

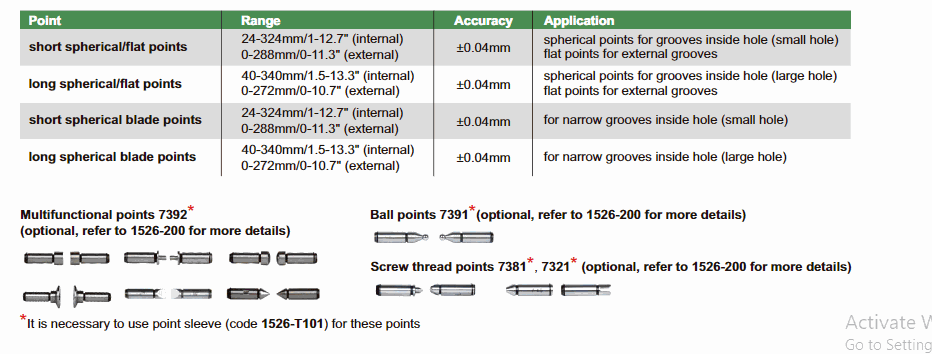

Point:

- Short spherical/flat points:

• Range: 24-324mm/1-12.7" (internal)

                       0-288mm/0-11.3" (external)

• Accuracy: ±0.04mm

• Application: shperical points for grooves inside hole (small hole); flat points for external grooves

- Long spherical/flat points:

• Range: 40-340mm/1.5-13.3" (internal)

                        0-272mm/0-10.7" (external)

• Accuracy:  ±0.04mm

• Application: shperical points for grooves inside hole (large hole); flat points for external grooves

- Short spherical blade points:

• Range: 24-324mm/1-12.7" (internal)

                       0-288mm/0-11.3" (external)

• Accuracy: ±0.04mm

• Application: for narrow grooves inside hole (small hole)

- Long spherical blade points:

• Range: 40-340mm/1.5-13.3" (internal)

                        0-272mm/0-10.7" (external)

• Accuracy:  ±0.04mm

• Application: for narrow grooves inside hole (large hole)

Optional accessory:

- Points (code 1526-T101, 7392, 7391, 7381, 7321)

- Depth stop (code 6143)

- Data output cable (code 7315-, 7302-, 7305-)
