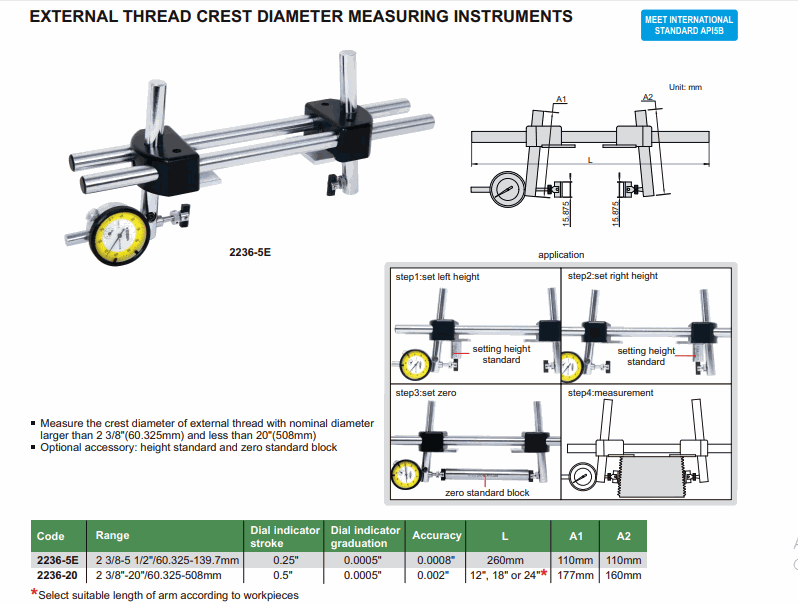

INSIZE 2236-5 外螺纹顶径测量仪 (2 3/8-5 1/2“ / 60.325-139.7mm; 0.02mm)

Measure the crest diameter of external thread with nominal diameter larger than 2 3/8” (60.325mm) and less than 20”(508mm)

Range(L): 2 3/8-5 1/2“ / 60.325-139.7mm

Dial indicator stroke: 5mm

Dial indicator graduation: 0.01mm

Accuracy: 0.02mm

L: 260mm

A1: 110mm

A2: 110mm

Optional accessory:

- Height standard and zero standard block
