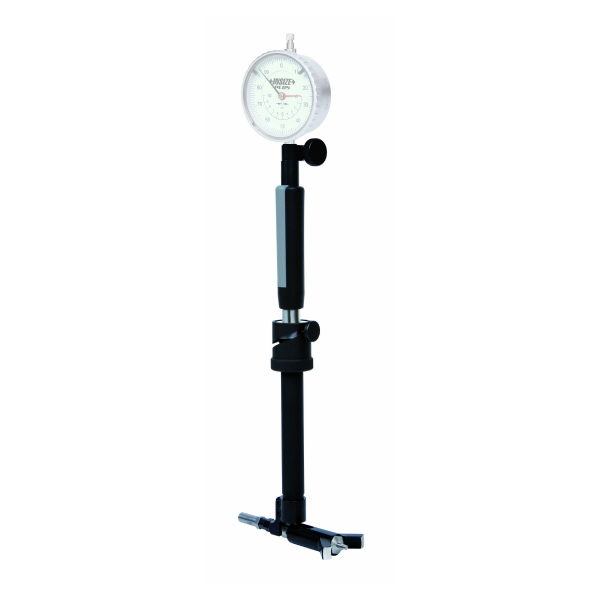

INSIZE 2921-150 旋转内径表 (80-150mm)

Range: 80-150mm

Accuracy (without dial indicator): 2μm

Repeatability (without dial indicator): 1μm

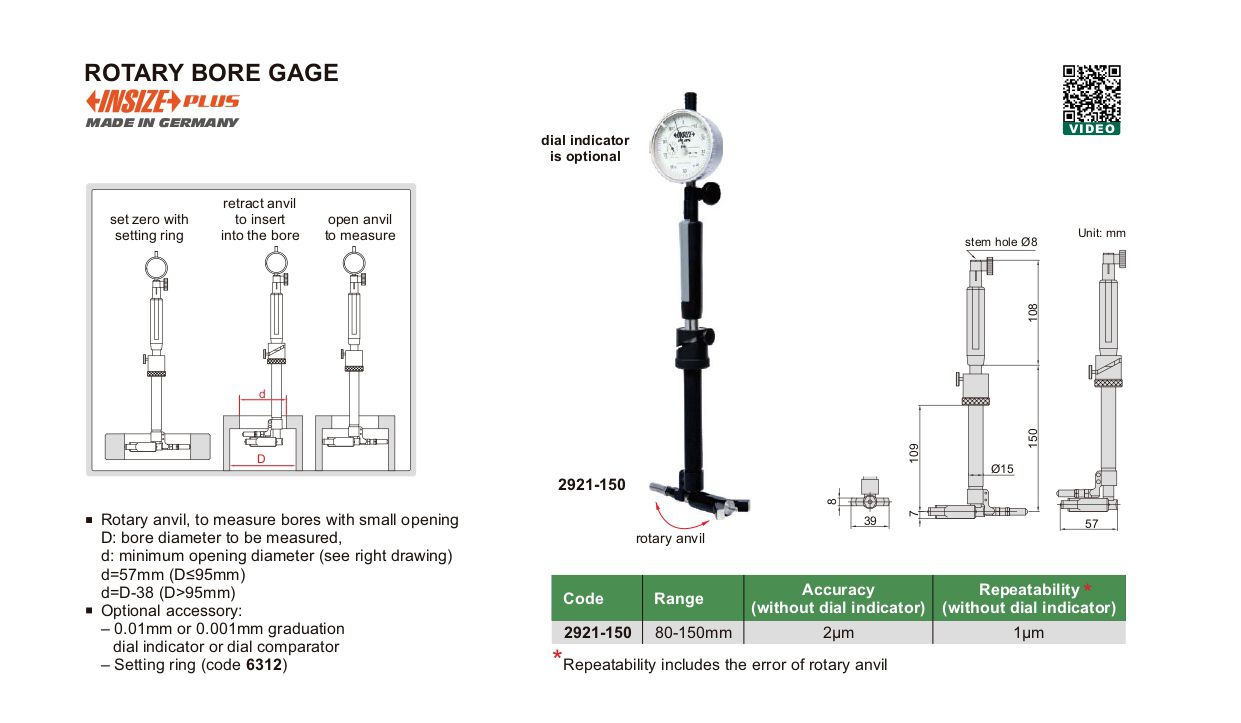

Rotary anvil, to measure bore with small opening

D: bore diameter to be measured

d: minimum opening diameter (see right drawing)

d=57mm (D≤95mm)

d=D-38 (D>95mm)

Optional accessory:

- 0.01mm or 0.001mm graduation dial indicator or dial comparator

- Setting ring (code 6312)
