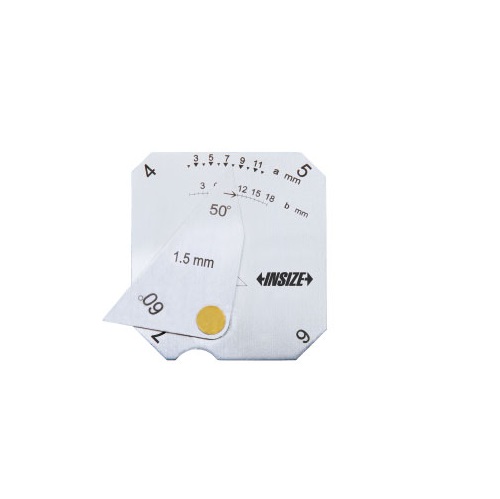

INSIZE 4850-1 焊缝卡规

Measurement/ Range/ Graduation/ Accuracy:

- Leg height: 0-18mm/ 1 mm/ ±0.5mm

- Theoretical throat size (a): 2-12mm/ 1mm/ ±0.5mm

- Throat size: 4, 5, 6, 7mm/-/ ±0.5mm

- Angle of preparation: 50°, 60°/-/±1°

- Thickness: 1.5, 2, 3.5mm/-/±0.2mm

Made of stainless steel

Datasheet
