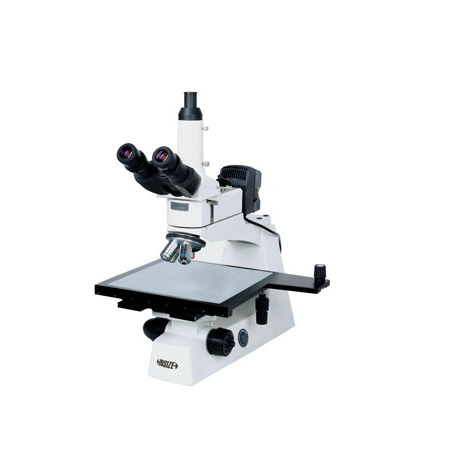

INSIZE 5104-M700 工业检测显微镜 (40X~400X)

Magnification: 40X~400X

Eyepiece (wide field): 10X (view field: ϕ22mm)

Objective (plan achromatic): 4X; 10X; 20X; 40X

Working distance: 17.8mm; 10mm; 5.8mm; 2.9mm

Numerical aperture: 0.10; 0.25; 0.40; 0.60


- Double layer

- Size: 300x268mm

- Travel: 250x200mm

Kohler illumination: 6V/20W halogen lamp, brightness is adjustable; built-in green, blue, yellow, and frosted glasses

Pupil distance: 48~75mm

Diopter adjustment: ±5 diopter (two eyepieces)

Power supply: 220V, 50/60Hz

Dimension: 647x268x376mm

Weight: 12kg

Standard delivery:

- Main unit: 1pc

- Camera connector: 1pc

- Anti- dust cover: 1pc

Optional accessory:

- Bright field objective:

  • 2.5X plan achromatic objective (focus distance: 11.7mm)

  • 5X plan achromatic objective (focus distance: 15.5mm)

  • 50X plan achromatic objective (focus distance: 0.32mm)

  • 100X plan achromatic objective (focus distance: 2mm)

- Polarizer and analyzer

- Digital camera

- Camera adpater 0.5X
