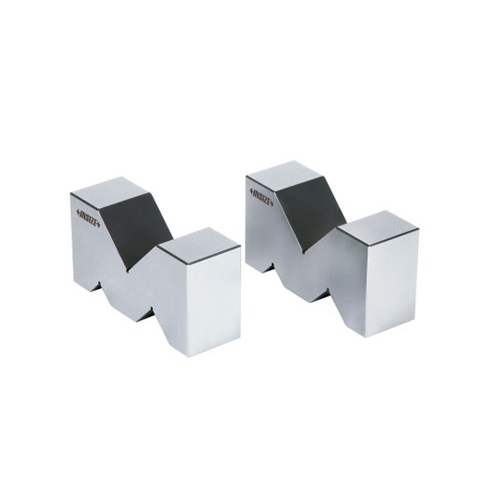

INSIZE 6887-1 V槽块 (2块/套)

Size (LxWxH): 55x60x40mm

Range of shafts (Ød1): 3-32mm

Range of shafts (Ød2): 3-16mm

Range of shafts (Ød3): 3-22mm

Parallelism of three V grooves to top and bottom sides: 5µm

Height difference of a matched pair: 5µm

Two V-blocks per set

Made of hardened tool steel
