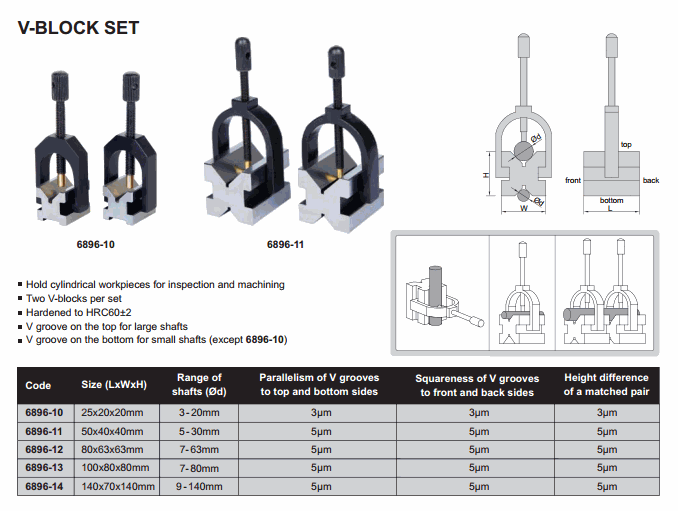

INSIZE 6896-13 V形架 (100x80x80mm)

Size: 100x80x80mm
Range of shafts (Ød): 7~80mm
Parallelism of V grooves to top and bottom sides: 5µm
Squareness of V grooves to front and back sides: 5µm
Height difference of a matched pair: 5µm
Two V-blocks per set
Hardened to HRC60±2
V groove on the top for large shafts
V groove on the bottom for small shafts (except 6896-10)
Hold cylindrical workpieces for inspection and machining
