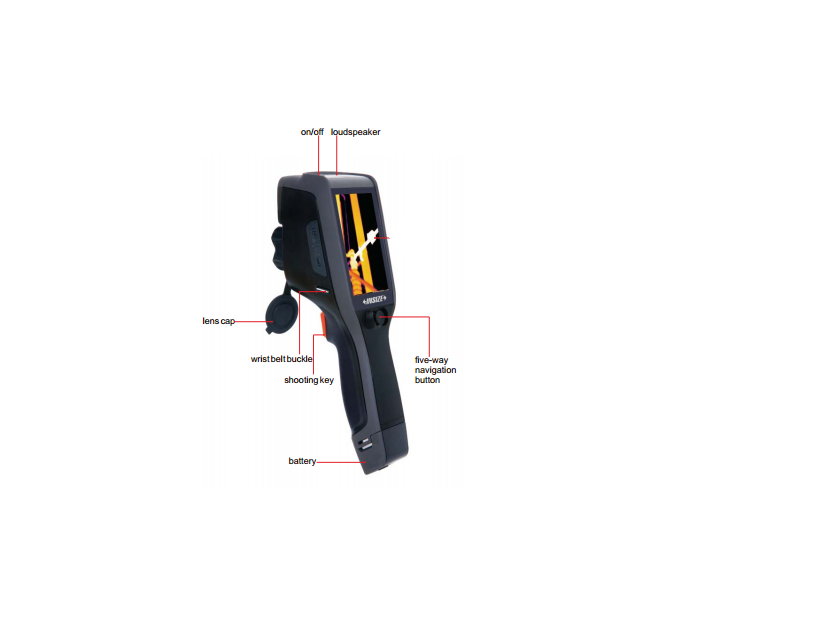

INSIZE 9130-H360 红外热成像仪

  • 制造商: INSIZE
    Model: 9130-H360
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


Accuracy: ±2°C or ±2% (of maximize range) Features:

Image mode: IR, visible, PIP and MIF

Storage: in camera and TF card (up to 32GB)

Image format: JPG with temp info

Output: USB, HDMI

Power: Rechargeable LI-ion battery (7.4V), working time ≥4h

Color palette: 8 modes


IR resolution: 192x144

NETD: ≤50mk

Focus length:7mm/F1.1

Angle of view: 37.8° x28.8°

Spatial resolution: 3.45mrad

Focus adjustment: focus-free

Detector type: unrefrigerated vanadium oxide/8~14μm

Pixel size: 25μm

Visible camera: resolution 500W, focus-free

Display: 4" hightlight LCD touch screen, 480x800

Digital zoom: 1.1~4

Temperature range: -20°C~350°C

Accuracy: ±2°C or ±2% (of maximize range)

Emissivity: 0.01-1.00 (adjustable)

Operating temperature: -10°C~50°C

Operating humidity: 10HZ~150HZ~10HZ 0.15mm (IEC 60068-2-6)

Vibration: 30g 11ms (IEC 60068-2-27)

Weight: 735g

Dimension: 274x97x78mm

Standard delivery: Main unit, power supply adapter, USB cable, HDMI cable, capacitive screen gloves, TF card (16GB)
