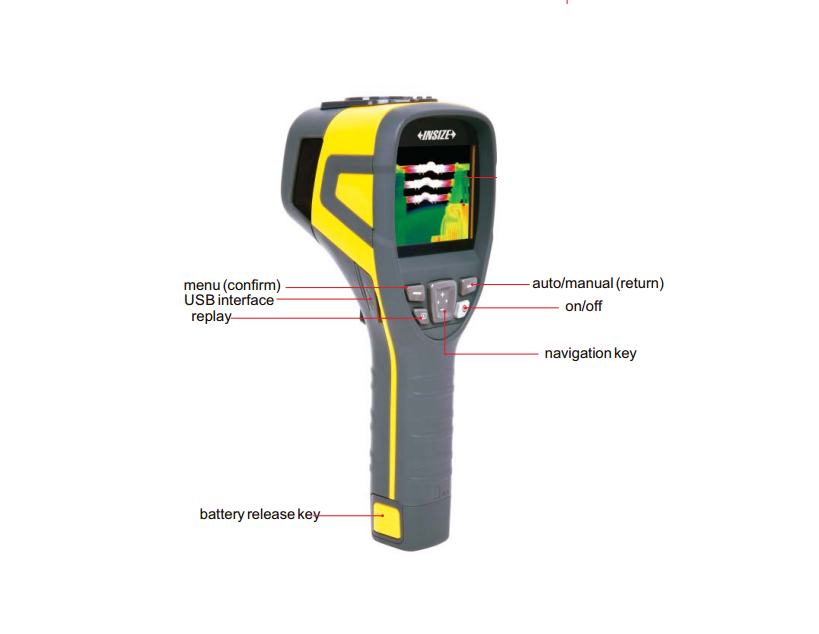

INSIZE 9131-B350 红外热成像仪 (-20°C~350°C; ±2°C)

  • 制造商: INSIZE
    Model: 9131-B350
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Features:

Image mode: IR, visible image, PIP and MIF

Storage: SD card (16GB)

Image format: JPG with temp info

Output: USB

Power: Rechargeable Li-ion battery, working time ≥4h

Color palette: 6 modes


Specifications:

IR resolution: 160x120

NETD: ≤50mk

Focus length: 5mm/F1.2

Angle of view: 30°x23°

Spatial resolution: 3.30mrad

Focus adjustment: fixed

Detector type: unrefrigerated vanadium oxide/8~14μm

Pixel size: 17μm

Visible camera: resolution 640x480, automatic focus

Display: 3.5" hightlight LCD screen, 320x240

Digital zoom: x2, x4

Temperature range: -20°C~350°C

Accuracy: ±2°C or ±2% (of maximize range)

Emissivity: 0.01-1.00 (adjustable)

Operating temperature: -10°C~50°C

Operating humidity: -10%~95%RH

Vibration: 10HZ~150HZ~10HZ 0.15mm (IEC60068-2-6)

Impact: 30g (IEC 60068-2-27)

Weight: 740g

Dimension: 258x98x90mm

Standard delivery: Main unit, power supply adapter, USB cable, 16G SD card
