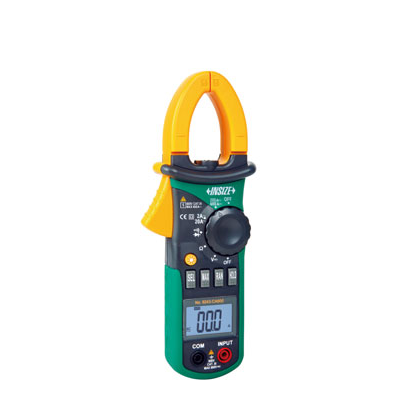

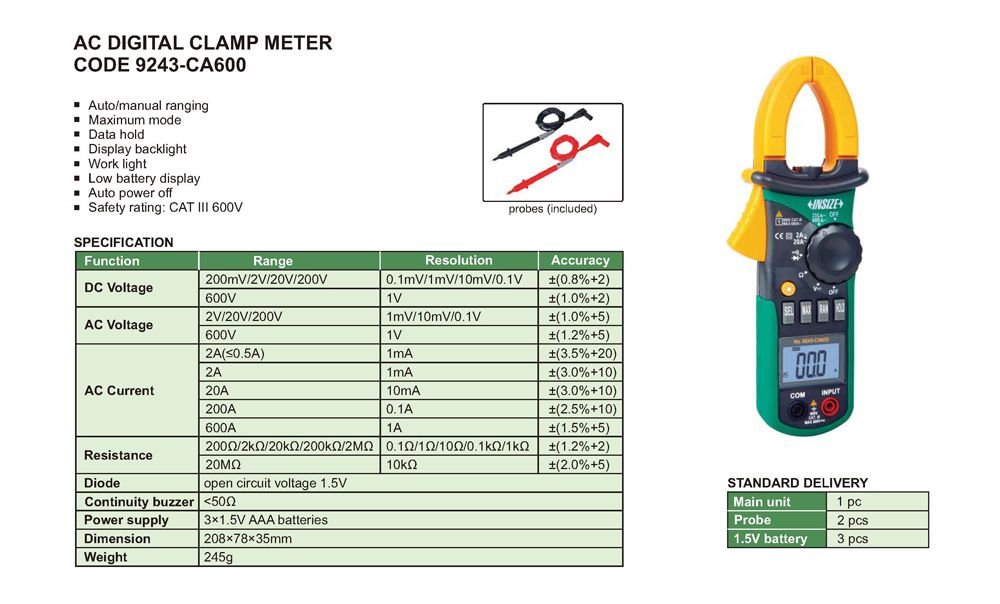

INSIZE 9243-CA600 交流钳形表 (600V; 600A)

DC Voltage:

- Range: 200mV/2V/20V/200V/600V

- Resolution: 0.1mV/1mV/ 10mV/0.1V/1V

- Accuracy: ±(0.8%+2) or ±(1.0%+2) for range 600V

AC Voltage:

- Range: 2V/20V/200V/600V

- Resolution: 1mV/10mV/0.1V/1V

- Accuracy: ±(1.0%+5) or ±(1.2%+5) for range 600V

AC current:

- Range: 2A (≤0.5A); Resolution: 1mA; Accuracy: ±(3.5%+20)

- Range: 2A; Resolution: 1mA; Accuracy: ±(3.0%+10)

- Range: 20A; Resolution: 10mA; Accuracy: ±(3.0%+10)

- Range: 200A; Resolution: 0.1A; Accuracy: ±(2.5%+10)

- Range: 600A; Resolution: 1A; Accuracy: ±(1.5%+5)

Resistance

- Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ; Resolution: 0.1 Ω/1Ω/10Ω/0.1 kΩ/1kΩ; Accuracy: ±(1.2%+2)

- Range: 20MΩ; Resolution: 10 kΩ; Accuracy: ±(2.0%+5)

Diode: open circuit voltage 1.5V

Continuity buzzer: <50Ω

Power supply: 3x1.5V AAA batteries

Dimension: 208x78x35mm

Weight: 245g

Standard delivery:

- Main unit: 1pc

- Probe: 2pcs

- 1.5V battery: 3pcs
