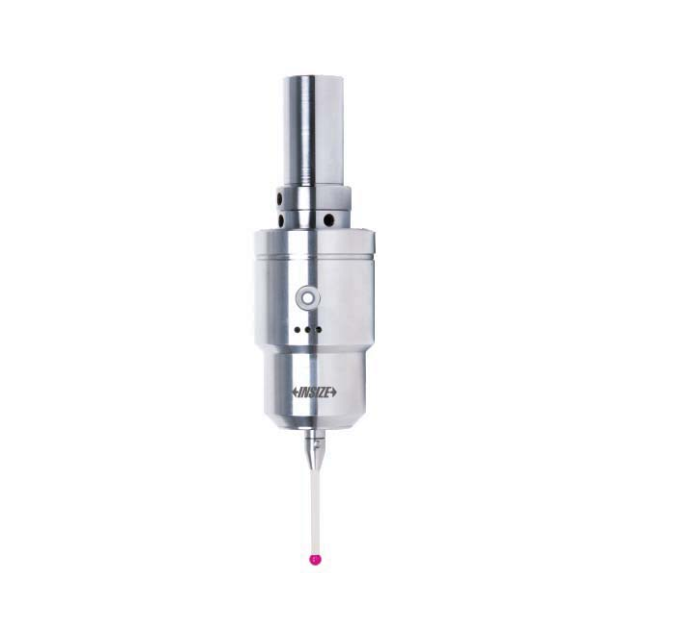

INSIZE 9410 触发器型三维探头 (115.5mm)

Probe length(L): 115.5mm

Shank diameter(D): 20mm

Trigger direction: +X, ±Y, +Z

Directional trigger protection stroke: X-Y+12°, Z+5mm

Arbitrary one-way repeated trigger accuracy: ≤1μm

Trigger force in X-Y direction (with standard styli): 0.3-0.6N

Trigger force in Z direction: 4N

Class of protection: IP 67

Type-C charging cable: 1.5m

Signal extension cord (provide signals to CNC): 1m

Details

Datasheet
