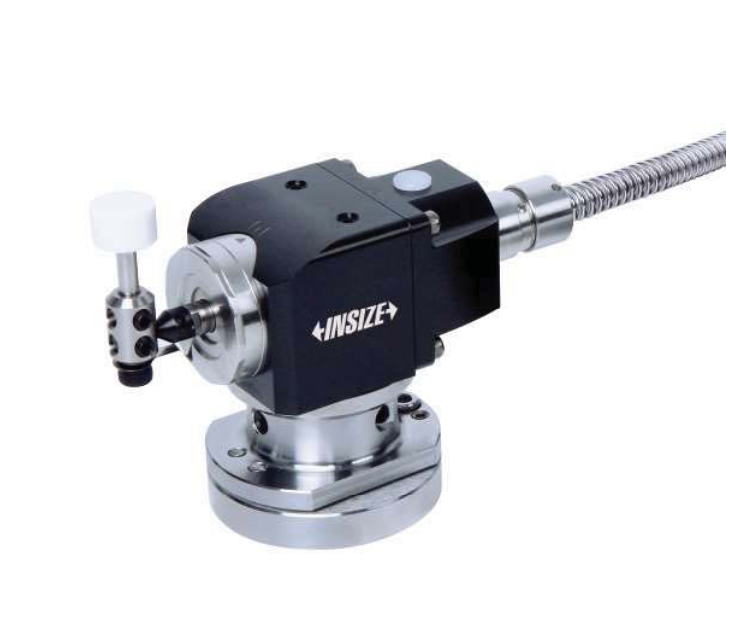

INSIZE 9412 零点设置器 (12.7 mm)

Height: 80mm ±0.5mm

Diameter of zero setter: 12.7mm

Trigger Direction: ±X; ±Y; ±Z

Trigger Protection Stroke: X-Y: ±5mm; Z: 8mm

Axial reset force: 3.4N-3.6N

Repeated trigger accuracy: ≤1μm

Hardness of the zero setter:  HM8.5

Class of protection: IP68

Cable length*: 6m (stainless steel sheath 3m)

Input voltage:  24V±10% (DC)

Load current: max: 50mA

Signal type and logic**: SSR (NC/NO)

*The length of the cable can be customized

**Before purchasing, it is necessary to confirm whether the working logic of the tool setter output signal matches CNC control system
