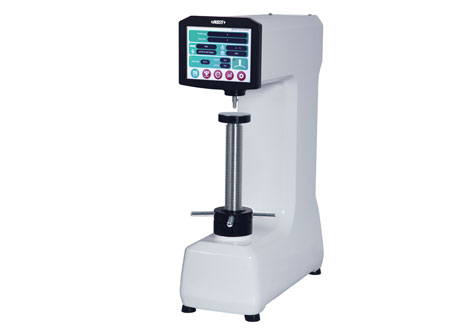

INSIZE HDT-RT151 电动数字洛氏/表面洛氏硬度计 (20 ~ 88HRA, 20~100HRB, 20~70HRC)

Type: Rockwell

Measurement range: 20~88HRA

20~100HRB

20~70HRC

Hardness scale: With indenter: HRA, HRB, HRC, HRD, HRF, HRG

With optional: HRE, HRH, HRK, HRL,HRM, HRP, HRR, HRS, HRV

Preliminary test force: 98N/10kgf for Rockwell

Test force: 588N(60kg), 980N (100kg), 1471N(150kg)

Stage eleavation: manual

Load control: automatic (load/dwell/unload)

Load dwell time: 2~60 second

Resolution: 0.1HR

Max. workplece height: 230mm

Max. testing width: 170mm

Power supply: 100~240V, 50/60Hz

Dimension: 475x200x700m

Weight: 70kg

STANDARD DELIVERY

Main unit: 1pc

Diamond indenter: 1pc

ø1.5875mm carbide ball indenter: 1pc

ø150mm flat anvil: 1pc

ø58mm flat anvil: 1pc

V-type anvil: 1pc

Hardness test block HRC20~0: 1pc

Hardness test block HRC40~50: 1pc

Hardness test block HRC60~70: 1pc

Hardness test block HRBW80~100: 1pc

Hardness test block HRA80~90: 1pc

Bluetooth printer: 1pc

Anti-dust cover: 1pc
