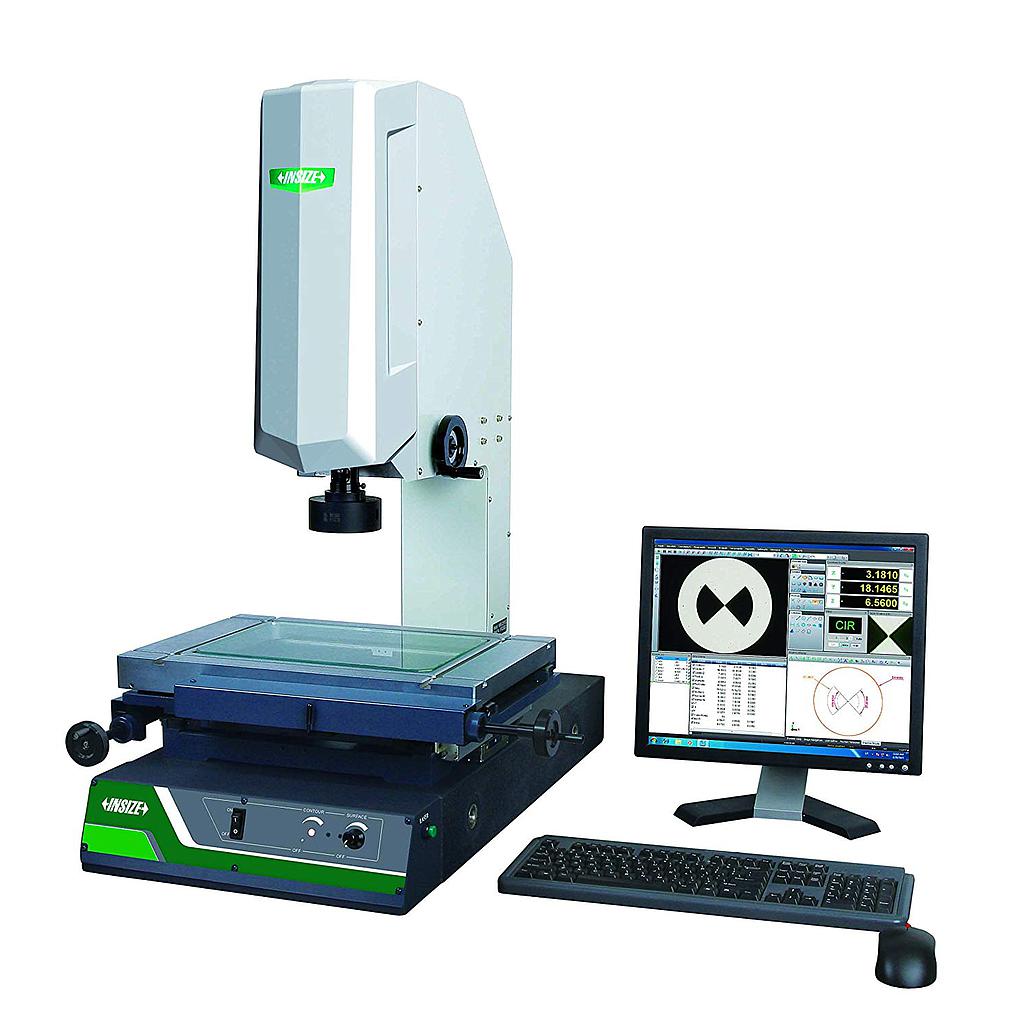

INSIZE ISD-V400A Vision Measuring System (29X ~ 184X, 400x300x150mm)

Measuring Range (X x Y x Z): 400x300x150mm

Stage Size: 606x466mm

Stage Glass Size: 450x350mm

Resolution of X/Y/Z Axis: 0.5µm

Accuracy of X/Y/Z Axis: ≤(2.5+L/100)µm (L is the measuring length in mm)

Repeatability of X/T Axis: 2µm

Objective: 0.7X ~ 4.5X (zoom)

Workign Distance: 92mm

Magnification: 29X ~ 184X (on 21.5" monitor)

Camera: 1/3" color CCD, 0.3M pixel

Illumination: Surface and contour with adjustable LED

Max workpiece height: 150mm

Max workpiece weight: 20kg

Operation system: Windows 7/8/10

Drive Method: Manual

Power Supply: 110/220V, 50/60Hz

Dimension (L x W x H): 970x670x940mm

Weight: 240kg

Standard Delivery

Main unit: 1pc

Computer: 1pc

Calibration glass chart: 1pc

Clay : 1pc

Foot switch: 1pc

Anti-dust cover: 1pc

Optional accessories:

- 0.5X auxiliary objective: Code: ISD-V-OB05X

                     Working distance: 175mm

                     Magnification: 14.5 ~ 92X (on 21.5" monitor)

- 2X auxiliary objective: Code: ISD-V-OB2X

                     Working distance: 36mm

                     Magnification: 58 ~ 368X (on 21.5" monitor)

- Probe:code ISD-V-PROBE

Include Ø2mm and Ø3mm styli, Ø25mm calibration ball
