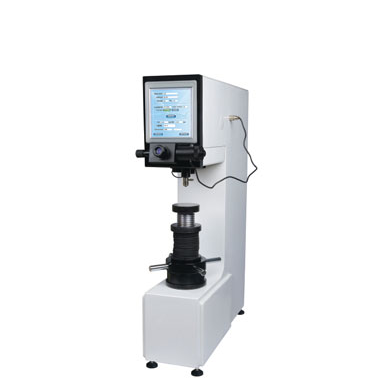

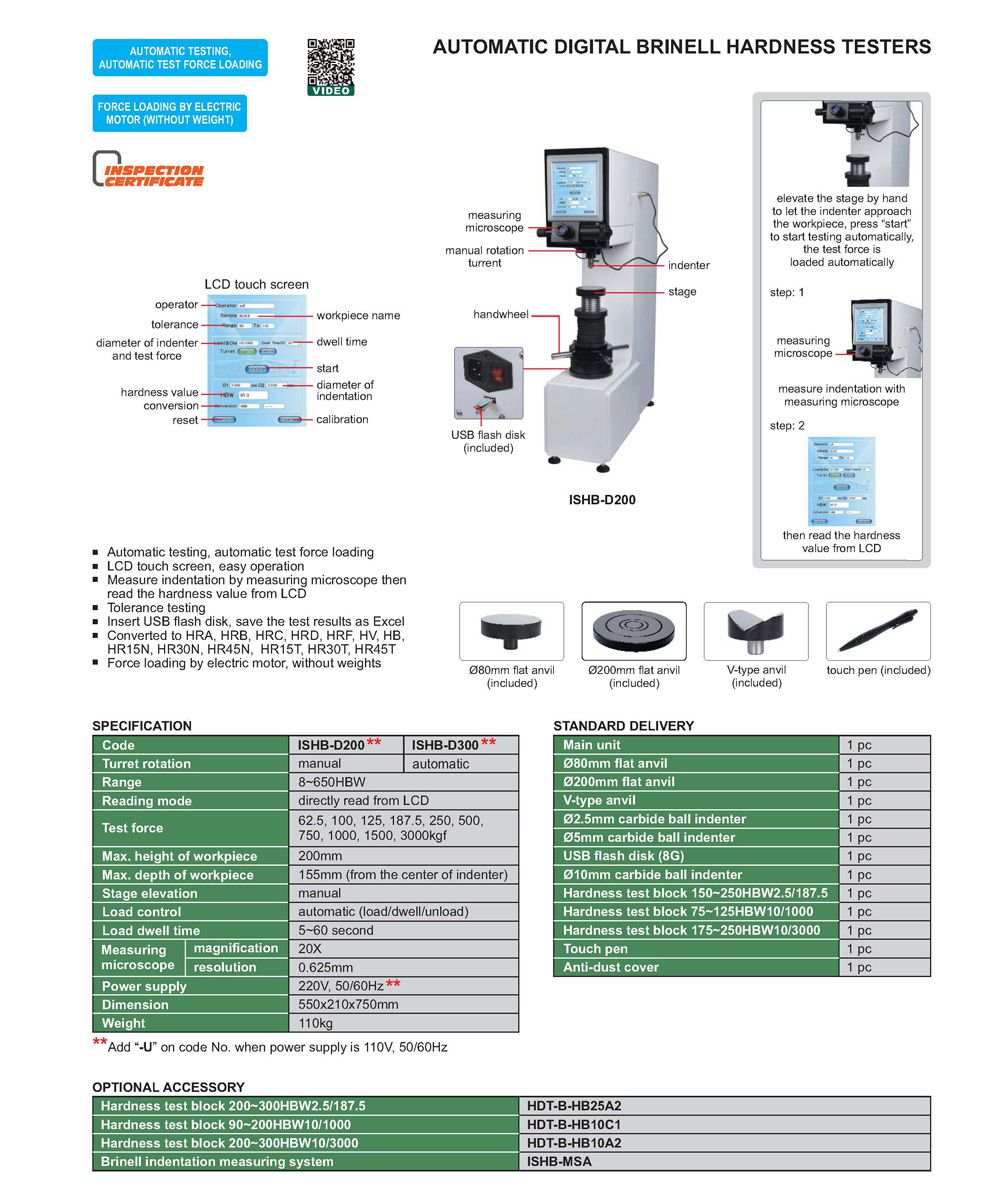

INSIZE ISHB-D300电动数显布氏硬度计 (8~650HBW; 自动炮塔转动)

Turret rotation: automatic

Range: 8~650HBW

Reading mode: directly read from LCD

Test force: 62.5; 100; 125; 187.5; 250; 500; 750; 1000; 1500; 3000kgf

Max. height of workpiece: 200mm

Max. depth of workpiece: 155mm (from the center of indener)

Stage elevation: manual

Load control: automatic (load/dwell/unload)

Load dwell time: 5~60 sec

Measuring microscope:

- Magnification: 20X

- Resolution: 0.625mm

Power supply: 220V, 50/60Hz

Dimension: 550x210x750mm

Weight: 110kg

Optional accessory:

- Hardness test block 200~300HBW2.5/187.5

- Hardness test block 90~200HBW10/1000

- Hardness test block 200~300HBW10/3000

- Brinell indentation measuring system

Standard delivery:

- Main unit: 1pc

- Φ80mm flat anvil: 1pc

- Φ200mm flat anvil: 1pc

- V-type anvil: 1pc

- Φ2.5mm carbide ball indenter: 1pc

- Φ5mm carbide ball indenter: 1pc

- USB flash disk (8G): 1pc

- Φ10mm carbide ball indenter: 1pc

- Hardness test block 150~250HBW2.5/187.5: 1pc

- Hardness test block 75~125HBW10/1000: 1pc

- Hardness test block 175~250HBW10/3000: 1pc

- Touch pen: 1pc

- Anti-dust cover: 1pc
