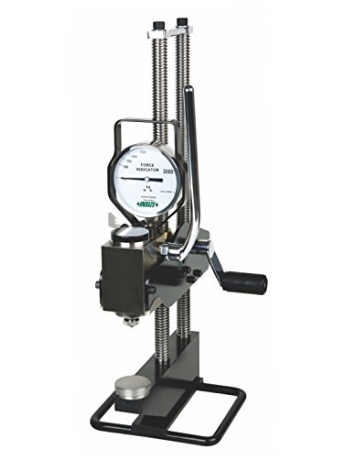

INSIZE ISHB-H131 液压硬度计

SPECIFICATION:

Measuring range: 16~650HBW

Test force: 3000kg

Indenter: Ø10mm carbide ball

Measuring microscope: 20X, graduation 0.01mm

Max. workpiece height : 350mm

Max. workpiece depth : 90mm (from the center of indenter)

Dimension : 270×225×570mm

Weight : 13.8kg

STANDARD DELIVERY: Main unit , Flat anvil, V-type anvil, Spherical anvil, Ø10mm carbide ball  (2pc), Brinell test block, Measuring microscope
