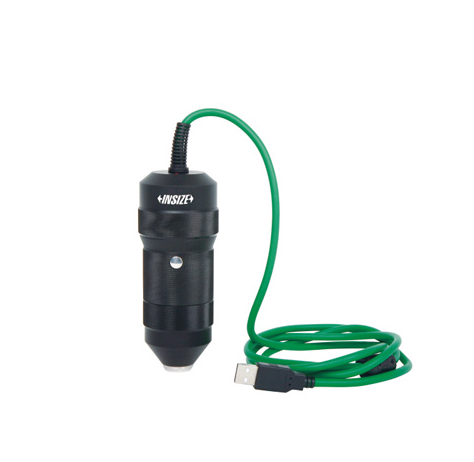

INSIZE ISHB-MSA 布氏压痕测量系统 (16~650HB)
制造商: INSIZE Model: ISHB-MSA 保障: 12 Month - 报价要求
- 联系
Applicable Brinell indenter: Φ10mm; Φ7.26mm Φ5mm; Φ4mm; Φ2.5mm
Hardness range: 16~650HB
Range of indentation diameter: Φ0.6~6mm
Test force: 62.5; 100; 125; 187.5; 250; 500; 750; 1000; 1500; 3000kgf
Hardness resolution: 1HB
Diameter measuring resolution: 0.001mm
Diameter measuring accuracy:
- ±0.4% (indentation diameter)
- ±0.8% (indentation diameter)
- ±1.2% (indentation diameter)
Camera:
- Sensor: 1/3.2” CMOS
- Pixel: 2M (resolution 1600x1200)
- View filed: 8x6mm
Dimension: 170x54x54mm
Weight: 385kg
Standard delivery:
- Main unit: 1pc
- Software: 1pc
- 5mm standard indentation block: 1pc
- 10mm standard indentation block: 1pc
Optional accessory:
- 2.5mm standard indentation block: ISHB-MSA-BLOCK25
