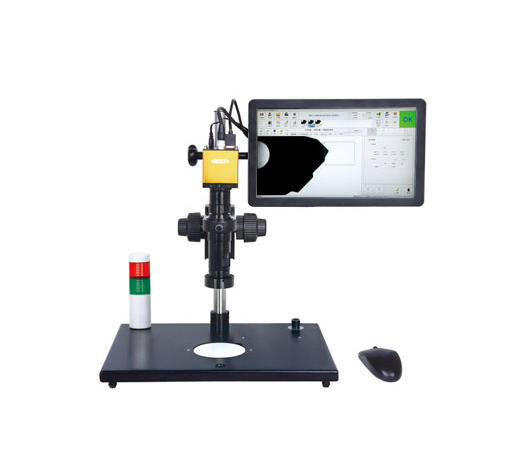

INSIZE ISM-DL400 测量显微镜 (15X~100X;1920x1080)

Magnification: 15X~100X

Resolution: 1920x1080

Pixel: 2M

Single pixel size: 3.75x3.75 μm

Frame rate: 60fps

Sensor: 1/2 “ CMOS

Chip structure: FPGA+ARM

Operating system: Linux 3.10

Power supply: 220V, 50/60Hz

Dimension: 570x300x430mm

Weight: 6.5kg

Standard delivery:

- Main unit: 1pc

- 0.5X camera adapter: 1pc

- 1X auxiliary objective: 1pc

- Calibration plate: 1pc

- 16GB USB flash disk: 1pc

- White/black plate: 1pc

- HDMI cable: 1pc

- Power adapter: 2pcs

Optional accessory:

- 1X camera adapter: ISM-DL-CA1X

- 2X auxiliary objective: ISM-DL-OB2X

- LED auxiliary illumination: ISM-DL-LED

- Coaxial light illumination: ISM-DL-COAXIAL

- Auxiliary objective: page 276
