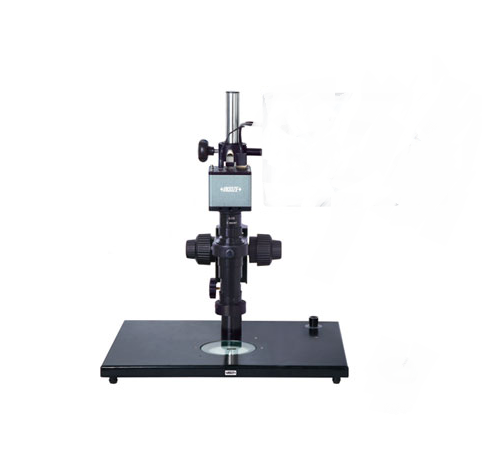

INSIZE ISM-DL500 High-Definition Measuring Microscope (30X~200X)
制造商: INSIZE Model: ISM-DL500 保障: 12 Month - 报价要求
- 联系
Magnification (on 28” TV): 30X~200X
Sensor: 1/1.8” CMOS
Pixel: 5M
Resolution: 3072x1728
Frame rate: 60fps
Output: HDMI
Power supply: power adapter and 220V, 50/60Hz
Dimension (LxWxH): 570x300x430mm
Measuring accuracy: ±3μm~±6μm
Objective magnification: 0.75X~5X
Image magnification (on28" TV): 30~200X
Standard delivery:
- Main unit: 1pc
- 0.5X camera adapter: 1pc
- 1X auxiliary objective: 1pc
- Calibration plate: 1pc
- 16G USB flash disk: 1pc
- White/black plate: 1pc
- Mouse: 1pc
- Power adapter: 1pc
Optional accessory:
- 1X camera adapter: ISM-DL-CA1X
- 2X auxiliary objective: ISM-DL-OB2X
- X-Y glass stage (travel:74x60mm):ISM-DL-STAGE
- 28”4K TV: 7313-TV28
- Scanner and hub: 7316-SCAN1
- LED light: Page 275
- Auxiliary objective: Page 276
