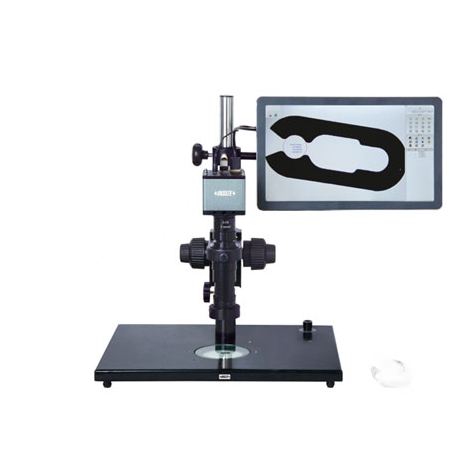

INSIZE ISM-DL510 Focus Stacking Measuring Microscope (with display) (15X~100X)
制造商: INSIZE Model: ISM-DL510 保障: 12 Month - 报价要求
- 联系
Magnification: 15X~100X
Sensor: 1/2” CMOS
Pixel: 2M
Resolution: 1920x1080
Frame rate: 60fps
Output: HDMI
Power supply: power adapter and 220V, 50/60Hz
Dimension (LxWxH): 570x300x430mm
Measuring accuracy: ±4μm~±8μm
Objective magnification: 0.75X~5X
Image magnification: 15X~100X
Standard delivery:
- Main unit: 1pc
- 0.5X camera adapter: 1pc
- 1X auxiliary objective: 1pc
- Calibration plate: 1pc
- 16G USB flash disk: 1pc
- White/black plate: 1pc
- Mouse: 1pc
- Power adapter: 1pc
Optional accessory:
- 1X camera adapter: ISM-DL-CA1X
- 2X auxiliary objective: ISM-DL-OB2X
- X-Y glass stage (travel:74x60mm):ISM-DL-STAGE
- Scanner and hub: 7316-SCAN1
- LED light: Page 275
- Auxiliary objective: Page 276
