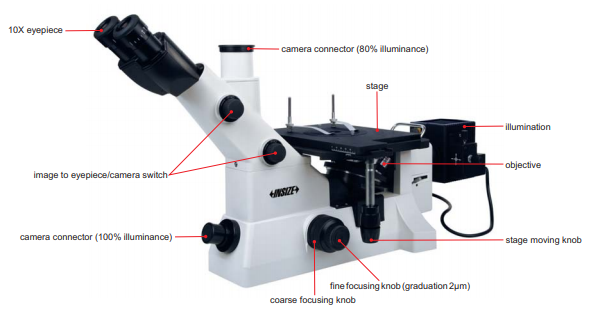

INSIZE ISM-M2000 金属显微镜

- For high magnification observation and metallurgical image analysis

- Infinite optical system, can add optical accessories like polarizer, analyzer, DIC into optical path without image quality influence

- Objective can be used in both bright field and dark field

- Kohler illumination system provides uniform illumination field

- Three working modes: 100% eyepiece observation, 100% camera observation, both eyepiece and camera observation

- Eyepiece (wide field): 10X

- Objective: 5X, 10X, 20X, 50X, 100X

- Numerical aperture: 0.12, 0.25, 0.4, 0.75, 0.7

- Working distance: 10mm, 10mm, 5mm, 1.3mm, 0.7mm

- Stage: double layer, size: 160x140mm, travel: 75x50mm (graduation: 0.1mm)

- Kohler illumination: 12V/50W halogen lamp, brightness is adjustable with polarizer and analyzer, built-in green,

yellow, blue, gray and frosted glass.

- Pupil distance: 48-75mm

- Diopter adjustment: +/-5  diopter (two eyepieces)

- Power supply: 110/220V, 50/60Hz

- Dimension: 647x268x376 mm

- Weight: 12kg
