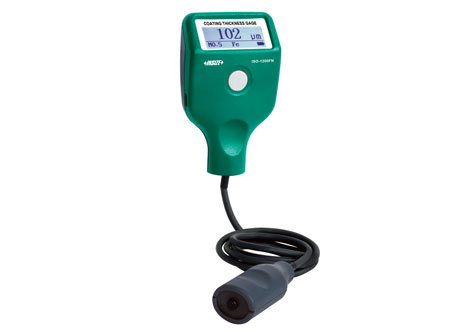

INSIZE ISO-1200FN 涂层测厚仪(基本型) (0 ~ 2000um)

SPECIFICATION

Measuring range:  0~2000um

Resolution:0.1μm (range<100μm); 1μm (100μm range<1000μm); 0.01mm (1.00mmsranges 2mm)

Accuracy: ±(2um+3%L) L is measuring thickness in um

Measure interval: 0.5s

Calibration mode: zero calibration

Measuring mode: Fe, NFe, Fe/NFe

Minimum substrate thickness:

FE: 0.2mm

NFe: 0.05mm

Minimum measuring area: 25mm

Minimum radius of curvature workpieces:

Convex surface: 5mm

Concave surface: 25mm

Unit: um/mil

Power supply: 2x1.5V AA batteries

Dimension: 101x62x28mm

Probe dimension: 71x26x22mm

Weight: 114g

Main unit: 1pc

Standard delivery

Fe zero calibration plate: 1pc

Nfe zero calibration plate: 1pc

Standard foil (100um): 1pc

1.5V AA battery: 2 pcs



Details

Datasheet
