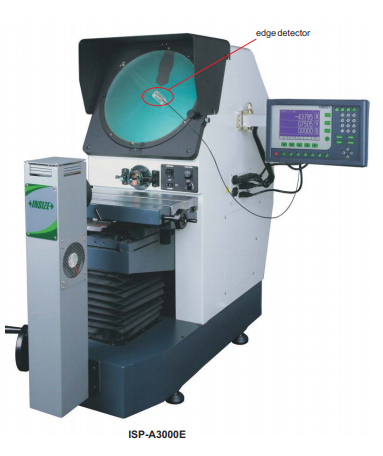

Insize ISP-A3000E 卧式投影仪

Edge detector (included)

Programming for batch measurements

Power supply: 110V,50/60Hz

Lens:

Magnification: 10X

View field: Ø30mm

Worrking distance: 77.7mm

Magnification accuracy: +/-0.08%

Projector screen:

Diameter: Ø300mm

Rotation range: 0°~360°,resolution:1" or 0.01°

Reference line: Cross-hairs

Stage:

Metal stage size: 400x150mm

Turning range: +/-15°

X-Z stage travel:range:200x100mm, resolution: 0.5µm, accuracy: (4+L/25)µm;L(mm)

Y (focus) travel range: 75mm

Max. load capacity: 50Kg

Output: RS232C,USB

Demension(LxWxH): 1090x830x1010mm

Weight: 160kg

Standard delivery: Main unit,Switch foot, Anti-dust cover, USB cable and software
