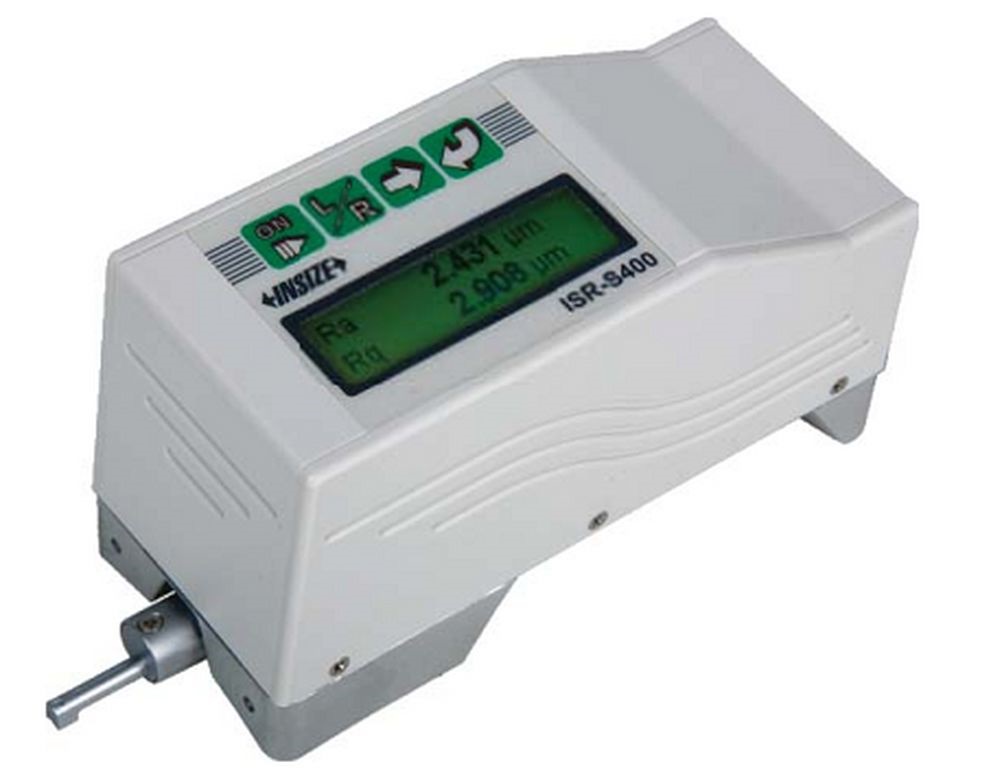

Insize ISR-S400 粗糙度仪
制造商: INSIZE Model: ISR-S400 来源: China - 联系
- Parameters: Ra, Rq, Rt, Rz, Rc, Rmax, Rsm, Rpc, Rmr, R, AR, Rx
- Range: Ra: 0 - 100µm, Rt: 0.05 - 400µm
- Accuracy: ±3%
- Resolution(Ra): 0.001µm
- Probe :
+ Type: inductive
+ stylus radius/angle: 5µm/90°
+ stylus material: diamond
- Measuring force: 0.75mN
- Measuring unit: µm/µin
- Cut off: 0.25/0.8/2.5mm
- Number of cut-offs: 1 to 5
- Traverse speed: 1mm/s
- Memory: 100 measurement results
- Output: USB
- Power: built-in rechargeble battery
- Dimension(L×W×H): 122x52x68mm
- Weight: 650g
- STANDARD DELIVERY: Main unit, Standard probe, Calibration block, Adjustable stand, AC/DC adapter
