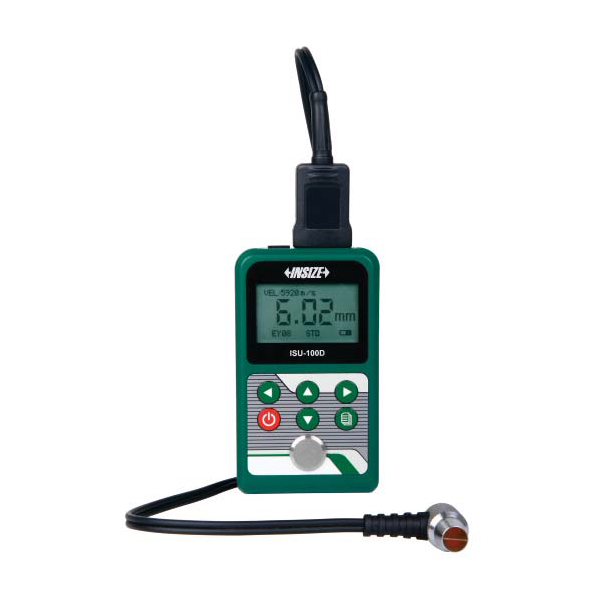

INSIZE ISU-100D Ultrasonic Thickness Gage (0.8~300mm)

Specifications:

Measuring range: 0.8~300mm

Resolution: 0.01mm (range<100mm)

                   0.1mm (range≥100mm)

Accuracy: ±0.04mm (range<10 mm)

                 ±(0.04+H/1000)mm (range 10~100mm)

                 ±H/333mm (range≥100mm)

H is a thickness to be measured in mm

Transducer:

- Frequency: 50MHz

- Diameter (Ød): 10.8mm

Minimum size of pipe for measurement: 20x1.2mm(diameter x wall thickness)

Applicable temperature: <60°C

Velocity: 1000-9999m/s

Power supply: 2xAAA batteries

Dimension: 114x64x28mm

Weight: 200g

Measure the thickness from one side of object, suitable for pipe, tank, etc.

Applicable material: metal, plastic, glass, nylon, resin, ceramic, ice

Standard delivery:

Main unit: 1 pc

Transducer: 1 pc

Couplant: 1 bottle

Battery (AAA): 2 pcs
