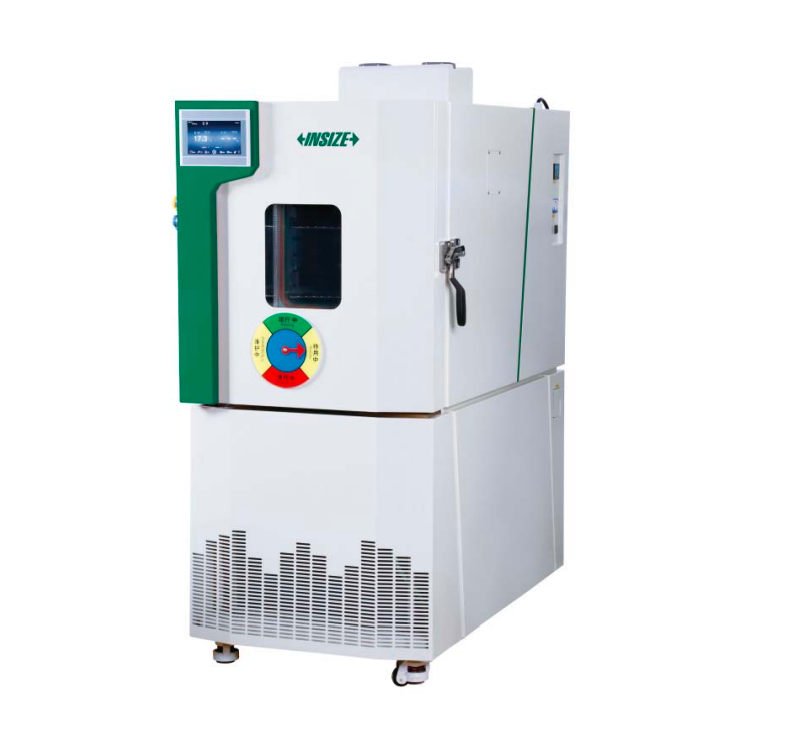

INSIZE THT-A101T 温湿度测试仪 (-40-150°C, 10-98%RH, 150L)

Working chamber dimension (WxHxD): 500x600x500mm

Working chamber volume: 150L

Temperature range: -40-150°C

Humidity range: 10-98%RH

Temperature/humidity fluctuation: ±0.5°C, ±2.5%RH

Temperature/humidity uniformity: <2°C, 5%RH

Temperature/humidity stability: 0.2°C, 2%RH

Temperature/humidity deviation: ±2°C, 3% RH

Warming up time: about 3°C/min

Cooling time: about 1°C/min

Material:

- Case material: Cold rolled steel plate+varnish

- Working chamber material: SUS#304 stainless steel

- Thermal insulation material: Rigid polyurethane foam

Freezing system: Compressor

Protector: No fuse switch, compressor overpressure, overheat protection, overtemperature protection, overload protection, dry burning protection, water shortage protection,...

Power supply: AC220V/380V, 3, 50/60HZ, 4.5kW

Dimension (WxHxD): 800x1660x1400mm

Weight: 365kg

STANDARD DELIVERY:

Main unit 1 pc

Test hole 1 pc

Shelf 2 pcs

Details

Datasheet
