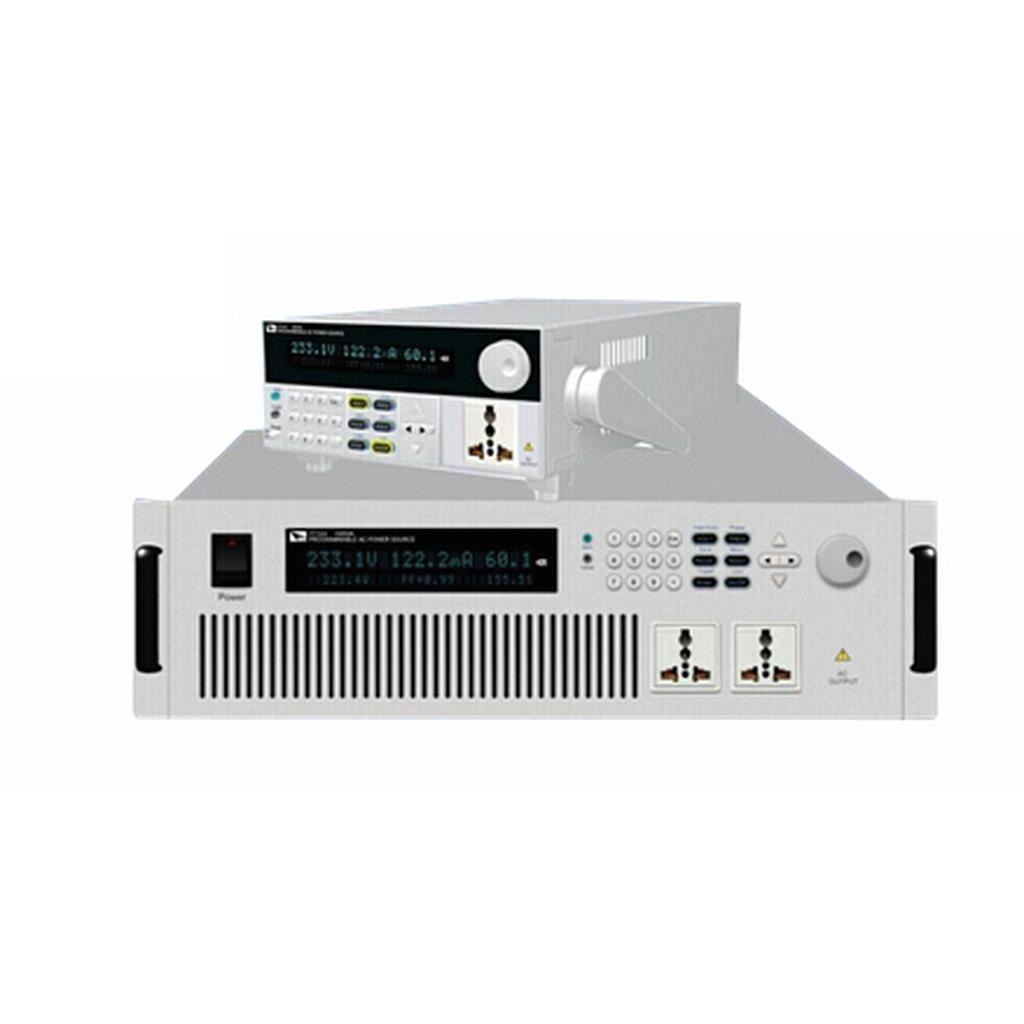

Itech IT7624 高性能可编程交流电源(300V; 1.5kVA; 1相)

- Input:
+ Phase: 1
+ Voltage: 220 Vac +/- 10%
+ Frequency: 47-63 Hz
+ Maximum Current: 30 A
- AC Output
+ Maximum output power: 1.5kVA
+ Phase: 1
+ Maximum output voltage 150Vac: max current 0-12Arms, 0-36Apeak
+ Maximum output voltage 300Vac: max current  0-6Arms, 0-18 Apeak
+ Total harmonic distortion : ≦ 0.5% at 45~500Hz
+ Line regulation: ≦0.1%
+ Load regulation: ≦0.5%
- Meter
+ Voltage:
   . Range: 0-300V
   . Resolution: 10mV
   . Accuracy: +/-(0.2%+0.2%FS)
+Current (rms):
   . Range: 0-12 Arms
   . Resolution: 10mV
   . Accuracy: +/-0.3%+(0.3%+0.2%xKfreq)xFS
+Current (Peak):
   . Range: 0-36Apeak
   . Resolution: 10mV
   . Accuracy: +/-0.3%+(0.3%+0.2%xKfreq)xFS
+Power:
   . Resolution: 10mV
   . Accuracy: +/-0.4%+(0.4%+0.2%xKfreq)xFS
+ Frequency:
   . Range: 45-5kHz
   . Resolution: 0.1 HZ
   . Accuracy: +/-1%+0.5Hz
+ Phase decree:
   . Range: 0-360 decree
   . Resolution: 1 decree
   . Accuracy:  +/- 1 decree ( 45-65 Hz)
- Giao tiếp: GPIB/USB/LAN/RS232/CAN
- Kích thước: 3U
